US and allied radar sites in the Middle East struck at least 10 times: Visual analysis

Within the early days of the war with Iran, which started greater than two weeks in the past, Iran and its proxies repeatedly focused the delicate missile protection infrastructure that underpins the early warning system utilized by america and its allies.

An ABC Information evaluation of satellite tv for pc imagery and verified movies recommend that no less than 10 radar websites have been struck by Iranian drones or missiles because the begin of the conflict, together with obvious harm to radar programs that depend on uncommon parts and value a whole lot of thousands and thousands of {dollars}.

Whereas the extent of the harm can’t be verified, obtainable imagery means that Iranian drones and missiles have been profitable in concentrating on a number of the amenities that home the delicate tools.

“It’s extremely costly, actually delicate and unbelievably weak,” mentioned William Alberque, who beforehand served because the director of NATO’s Arms Management, Disarmament, and Non-Proliferation Centre.

The scope of the harm stays unclear partly as a result of main satellite tv for pc corporations that usually present pictures to media have imposed delays and geographic constraints on the discharge of recent data in and round Iran. For the reason that battle started, Planet Labs imposed a 14-day delay in releasing pictures from the area, whereas Vantor doesn’t share imagery of U.S. navy places.

A protection official informed ABC Information, “we don’t focus on potential battle harm assessments.”

Excessive decision imagery launched previous to March 5 and decrease high quality pictures that stay obtainable recommend that Iran and its proxies have been in a position to inflict harm to bases internet hosting U.S. troops throughout the Center East. An ABC Information evaluation verified over 25 places hit throughout seven bases in 5 international locations, together with logistical buildings, hangars and gas storage containers.

In response to obtainable imagery, Iran and its proxies have focused radar programs in no less than seven Center Jap international locations, together with harm to a number of AN/TPY-2 radar programs – which help THAAD (Terminal Excessive Altitude Space Protection) missile protection programs – and an AN/FPS-132 Phased Array Radar in Qatar.

“We knew moving into that the Iranians had been going to attempt to use their drones to focus on our excessive worth targets resembling this,” mentioned Tom Karako, the director of the Missile Protection Mission on the Heart for Strategic and Worldwide Research. “Should you can take out the radar, you’re taking out its eyes and it disables the entire THAAD battery. If it does not know the place to shoot, if it might probably’t see the threats coming in, it can not direct the interceptors to go get them.”

‘Partially blinded’

The US and its allies depend on a patchwork of radar and satellite tv for pc programs to detect incoming threats, in line with consultants, and the intentional redundancy of a number of the programs permits for the continued detection of threats, even when some programs go offline.

Nevertheless, harm to a number of the extra essential parts of the U.S.-operated missile-defense infrastructure may diminish the flexibility to detect threats or lower the quantity of superior warning the programs present, consultants informed ABC Information.

Satellite tv for pc pictures from the preliminary days of the battle recommend Iran tried to focus on and probably broken a few of these important programs. A satellite tv for pc picture from March 1 of Prince Sultan Air Base in Saudi Arabia confirmed a plume of smoke from a constructing that, as of January of this 12 months, in line with satellite tv for pc imagery, housed an AN/TPY-2 radar system. It’s not clear from satellite tv for pc pictures if the focused constructing had a radar system on the time of the strike.

Satellite tv for pc imagery from two places close to Abu Dhabi and Al Sader within the United Arab Emirates, on March 1, signifies radar websites had been hit there as effectively. A evaluate of satellite tv for pc imagery signifies radar programs have been current in these places since 2016 and 2018, and tools can periodically be seen on imagery outdoors automobile sheds.

Decrease high quality imagery from the Muwaffaq al Salti base in Jordan from March 2 confirmed harm to a number of the buildings that home the AN/TPY-2 radar tools there. A Jordanian supply confirmed to ABC Information that the radar system was broken.

Satellite tv for pc imagery of Camp Arifjan in Kuwait, captured on March 4, reveals a number of radar domes showing broken, which was confirmed by Kuwait.  Equally, satellite tv for pc pictures captured on March 9, present harm to what seems to be satellite tv for pc dishes on the Al Udeid Air Base in Qatar.

“Taking out one TPY-2 doesn’t take down your theater missile protection functionality. It simply reduces, you are simply partially blinded,” mentioned Alberque. “You may community collectively your radar image with a purpose to cue concentrating on fairly effectively, however you’ll simply all the time quite have the beautiful capabilities,” referring to high-end capability.

An Iranian strike additionally appeared to break a part of an AN/FPS-132 Phased Array Radar in Umm Dahal, Qatar, in line with satellite tv for pc imagery captured on March 3, analyzed by Sam Lair, a researcher with the open-source intelligence staff on the Heart for Nonproliferation Research. Lair, sharing his evaluation with ABC Information, recognized particles from harm to the northeastern face of the radar, in addition to water runoff from firefighting efforts.

‘A cat-and-mouse sport’

Whereas the extent of the harm to these radar programs stays unclear, consultants informed ABC Information that the success of a number of the drone strikes highlights the challenges confronted by the U.S. in deploying the delicate and inherently weak tools.

So as to perform, radar programs want to have the ability to transmit and obtain radio waves, and the radiation they emit can function a beacon for sure sorts of missiles.

“You may’t simply pile up a bunch of concrete across the radar and anticipate it to then proceed to perform. It’s a little bit of a cat and mouse sport as within the nature of air and missile protection,” mentioned Karako.

Along with being weak to assaults, radar programs are costly, time-intensive to provide, and sometimes depend on rare-earth minerals which are in restricted provide, consultants famous.

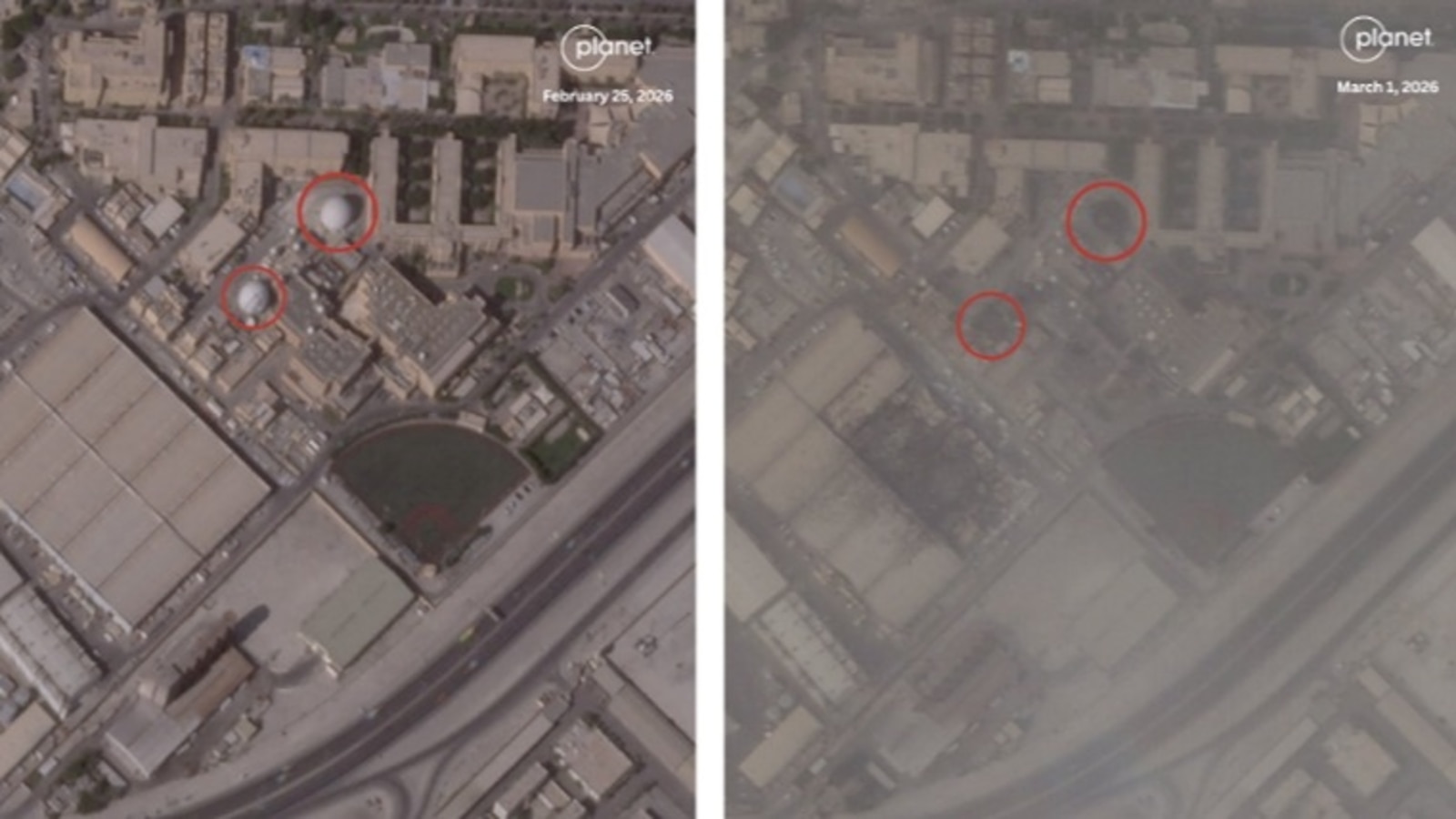

Movies and satellite tv for pc imagery reviewed by ABC Information present intensive harm to radar tools on the U.S. Navy’s Fifth Fleet headquarters in Manama, Bahrain. A video posted on social media reveals the second an obvious drone struck a radome on Feb. 28, the primary day of the battle.

In response to the Missile Defense Agency, the U.S. Military at the moment has eight THAAD batteries, with two dedicated to Guam and South Korea on a long run foundation. Every AN/TPY-2 radar – which is the primary sensor for a THAAD battery – prices roughly half a billion {dollars}, in line with publicly obtainable DoD paperwork.

The AN/FPS-132 that was probably broken in Qatar seems to be the one one within the area and was bought in a 2013 deal reportedly valued at $1.1 billion, in line with DoD disclosures to Congress and a commerce publication in 2017.

In response to Sam Lair,  the significance of the radar programs and their vulnerability make them prime targets for Iran.

“Focusing on radars within the gulf is smart for the Iranians. If they’ll degrade these, then they may have made it far more tough for the U.S. and Gulf allies to detect, characterize, and defend in opposition to missile assaults,” he mentioned.

‘You are all the time preventing the final conflict’

In response to Alberque, the harm to radar programs sustained throughout the preliminary days of the battle demonstrates the altering risk confronted by the U.S. and its allies within the area from Iranian drones.

“It was designed beneath a risk paradigm from the 90s and 2000s,” Alberque mentioned in regards to the U.S. missile protection within the area.

“You might be all the time preventing the final conflict – effectively, the TPY-2 is preventing the final stage of risk. I believe going ahead the US might be … going to take a look at missile protection that’s extra cellular, modular, straightforward to switch and straightforward to defend,” he mentioned. “I believe that’s the concern right here — it is a legacy system designed for the unsuitable risk setting.

The impression of the potential harm to radar programs stays to be seen, with obtainable information offering an inconclusive image of if Iran has develop into extra profitable in evading missile protection programs.

The United Arab Emirates – which initially disclosed the variety of drones and missiles Iran intercepted and whole numbers – noticed a steep improve within the variety of projectiles making it by their defenses on March 10. Two costly radar programs had been visibly broken within the nation on the primary day of the conflict.

Till March 9, information compiled by ABC Information utilizing publicly obtainable UAE Ministry of Protection statements confirmed that roughly 5% of projectiles had been penetrating the UAE’s defenses. On March 10, the info confirmed a sudden steep improve, with 25% of projectiles making it by. After this, the UAE stopped publishing full information, solely publishing various drones and missiles “engaged.”

Though information general seem to point a drop-off within the variety of Iranian drones and missiles concentrating on Gulf international locations, it’s tough to attract exact conclusions as a result of the info launched by most international locations isn’t full.

Saudi Arabia is one exception to this obvious drop in numbers. The nation reported intercepting a mean of 13 drones a day within the first week. This quantity has trended upward and on Saturday, March 14 alone, it reported intercepting 56 drones.
