On the top of the Chilly Struggle, one very specialised laptop was so secret that the world didn’t understand it existed. It ran its jobs as much as 200 instances as quick as every other laptop of its time. It was the U.S. National Security Agency’s important cryptographic processor in operation from the time of the Cuban Missile Crisis in 1962 by way of the Vietnam War and on previous the 1975 Helsinki Accords. The machine stopped operating solely when its transferring components lastly gave out.
The Harvest laptop mattered due to what it was in addition to when it ran. For 14 years, it was the engine processing the NSA’s most delicate intercepts at a time when signals intelligence was as near a strategic weapon as something in need of a warhead.
Designed and constructed by IBM for the NSA, Harvest was one of many first machines designed to use operations to huge datasets dashing previous, a precursor to the computer systems right this moment that handle steady video streams and security systems in actual time. It was additionally one of many first machines built as an add-on—a specialised helper supposed to do one job exceptionally nicely, bolted onto a common laptop. Harvest’s modular design is sort of a Sixties model of right this moment’s graphics chips that CPUs use to run intensive video-game and AI processing masses.
All that uncooked processing energy meant that Harvest additionally wanted nonstop rivers of knowledge to run on. And that led to a different pioneering achievement: the world’s first automated tape library that would robotically fetch any one among tons of of huge cassettes of magnetic tape from the machine’s racks.
Given Harvest’s unprecedented processing and storage capability, the machine’s designers naturally wanted to rethink how their system dealt with data. So IBM wrote a custom-made programming language referred to as Alpha to let code breakers rigorously describe cryptographic issues, simply as scientists on the time had been utilizing the emerging language Fortran to explain equations and data-processing algorithms.

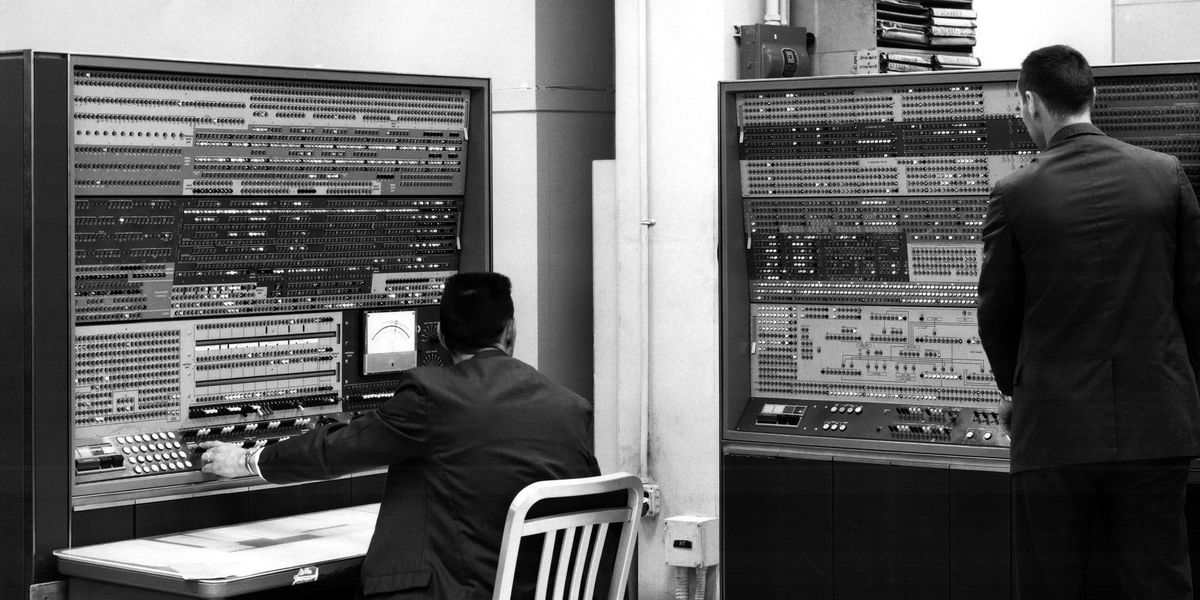

In Fort Meade, Md., an NSA knowledge heart hosted one of many world’s quickest computer systems of its time—though not usually mentioned, due to its delicate, high-security code breaking and cipher looking work. Nationwide Cryptologic Museum
The story of Harvest, pieced collectively from declassified documents and contemporary manuals and technical overviews, offers a brand new and sudden vista on the history of computing. It additionally gives a case research in how nationwide safety wants, particularly through the Chilly Struggle, pushed laptop expertise past the far reaches of what unclassified, civilian computing may obtain. Harvest’s distinctive historical past reveals a visionary algorithmic, coding, reminiscence, and {hardware} structure sometimes a long time forward of its time. However this machine was additionally constructed solely as soon as, for one singular objective, after which finally quietly retired.
The Coronary heart of NSA’s Secret Machine
IBM’s landmark 1960 transistorized mainframe, the IBM 7030, higher often called Stretch, offered the entrance finish for Harvest (which was formally often called the IBM 7950). IBM delivered Stretch to eight or nine customers, principally scientific analysis labs, from 1961 by way of ’63. Designed and prototyped throughout the second half of the 1950s, Stretch launched the now normal notion of an 8-bit byte. For its first three years of operation, Stretch was the non-classified world’s quickest laptop, though it failed to fulfill IBM’s aggressive aim of operating 100 instances as quick as Stretch’s predecessor, the IBM 704. Whereas IBM engineers in Poughkeepsie, N.Y., had been designing and constructing Stretch, the corporate was additionally quietly discussing a brand new system that will be constructed for NSA.
On the time, NSA’s present cryptanalytic computer systems—giant, batch-processing machines that required human operators to manually stage every tape run—had been struggling to maintain tempo with the sheer quantity of intercepted message visitors coming in from across the globe. What the company wanted was a machine that would course of an unbroken river of incoming knowledge, routinely, across the clock. That requirement alone profoundly formed Harvest’s design.
IBM’s Harvest system, custom-built for the NSA for code breaking, paired the IBM 7030 Stretch mainframe with a bespoke data-stream processor. Stretch dealt with strange computing and enter/output, together with the Tractor automated tape library. Each models shared two sorts of reminiscence: a big important financial institution and a smaller, sooner financial institution. When Stretch switched to streaming mode, Harvest drew two streams of knowledge, P and Q, from reminiscence, processed them in parallel, and returned the outcomes as a 3rd stream, referred to as R. Chris Philpot
After two failed proposals to NSA, in 1958 IBM lastly landed the contract: a Stretch-based machine, augmented by a {custom} coprocessor, with a revolutionary tape-based storage system, referred to as Tractor.
Stretch’s forte was floating-point math for scientific computations. IBM had designed it primarily for labs engaged on frontier analysis like nuclear weapons design and weather prediction. Against this, the {custom} coprocessor to be constructed atop Stretch would assist NSA analysts sift by way of alphanumeric characters—that’s, primarily integer knowledge.
Harvest’s coprocessor was the other of a general-purpose system. It was, relatively, a streaming computer. As an alternative of executing lengthy collection of directions, it adopted one mounted sequence of steps and utilized that very same sequence to each pair of characters as they streamed previous. Harvest shared reminiscence with the main Stretch processor and ran in bursts. Both Stretch was working, or else it suspended itself whereas Harvest’s coprocessor shot by way of knowledge in reminiscence at excessive speeds.
Stretch and Harvest had been among the many first giant computer systems constructed totally from transistors packaged in circuit playing cards and housed in giant, refrigerator-size frames. A 1962 technical manual about Stretch describes the machine’s CPU as divided into practical sections—the instruction unit, the look-ahead unit, the (parallel and serial) arithmetic unit, and the reminiscence bus unit. Harvest inherited Stretch’s primary circuit design however then added one thing unconventional: Its streaming models processed knowledge in overlapping phases referred to as a pipeline. So whereas one pair of knowledge bytes was being in contrast, the following pair was being fetched from reminiscence.
Harvest’s coprocessor operated by fetching two streams of knowledge, referred to as P and Q, from the system’s reminiscence, performing operations on them, then writing the outcomes to reminiscence as a 3rd stream, R. Every stream may very well be wherever from 1 to eight bits extensive. Harvest’s reminiscence was bit-addressable, which means phrase boundaries may very well be ignored totally. For example, it may fetch simply 5 bits relatively than filling out a complete byte. Streams P, Q, and R included versatile provisions for looping and addressing knowledge in complicated patterns—permitting, for instance, repeated fetching of brief strings from reminiscence.
Information from P and Q fed into two practical models. The easier was the logic unit, which carried out primary, bitwise operations—the identical operations any programmer would acknowledge right this moment—and wrote its outcomes again to reminiscence. The extra complicated was a table-lookup unit. It mixed incoming knowledge from P and Q to type an deal with in reminiscence, which may then be used to advance a counter by one, set a particular bit, or retrieve a saved worth. The latter unit functioned, in impact, just like the rotor wheel inside a cipher-encoding/decoding machine of the period, the sort that electronically substituted one worth for one more in accordance with the cipher machine’s wiring.
Harvest’s complexity baffled some on the NSA. Throughout worker excursions, in accordance with James Bamford’s 2001 NSA historical past, Body of Secrets (Doubleday), officers would level to the machine and scoff, “It’s lovely, but it surely doesn’t work.”
Not everybody on the company was postpone by the monumental machine, nonetheless. One of many few documented examples of Harvest at work, recounted by Bamford, describes the machine looking 3.5 billion characters of textual content for any of seven,000 goal phrases, in slightly below 4 hours.
In unclassified remarks from 1972, NSA analyst Robert Looney mentions one job Harvest had tackled—although he didn’t specify the tip aim or the code-breaking effort behind it. Codenamed “Moretown,” the job concerned sifting by way of 11 million messages spanning 16 years of intercepted visitors towards a listing of some 8,000 search phrases—all in about ten hours.
IBM’s Frances Allen helped design Alpha, Harvest’s custom-built programming language.IBM
IBM’s James H. Pomerene was chief engineer of Harvest, supervising its custom-designed circuits that’d been optimized for algorithms utilized in many cryptographic jobs.IEEE
IBM’s Fred Brooks Jr. was a key co-architect of Harvest’s {hardware} system. Computer History Museum
As a unified system, Harvest—that’s, Stretch plus IBM’s custom-built streaming processor add-on—streamed 1 byte each 0.3 microseconds, and it boasted about 800 kilobytes of addressable reminiscence.
“Right here you see one financial institution pulled out of its oil bathtub,” Looney mentioned in his 1972 remarks celebrating Harvest’s tenth anniversary of operations. He held up a photograph of Harvest’s magnetic core memory banks—six of them, submerged in oil for cooling.
Issue within the time calls for of varied knowledge fetches from Tractor’s tape archives, and a single Harvest “instruction” typically carried on, while not having any human intervention, for hours.
“It was fairly an incredible laptop,” recalled IBM Fellow Emerita Frances Allen in a 2001 oral history. “One instruction, for instance, may do types, and do statistical evaluation of the information that was streaming by it.… The whole lot we had been doing at the moment was on the leading edge. There was no query about it.”
Allen, who acquired the A.M. Turing Award in 2006, was one of many builders who labored on each Stretch and Harvest. On the time she began engaged on Harvest, Allen famous, the Fort Meade, Md.–primarily based NSA was largely unknown outdoors of categorised intelligence circles. So she at first assumed she was engaged on an unspecified naval venture. “We considered ourselves as working for the Bureau of Ships, as a result of that was the code identify for NSA within the price range!” recalled Allen, who died in 2020.
Different key Harvest designers and early builders wound up turning into influential figures over the course of computing historical past. Frederick Brooks Jr., recipient of the 1999 Turing Award and a serious contributor to the {hardware} and software program for IBM’s System/360, additionally helped develop Harvest. And James Pomerene, previous to his involvement with Harvest as its chief engineer, had beforehand helped construct the pioneering IAS computer alongside John von Neumann.
How Tractor Saved a World of Information
IBM constructed the Tractor tape system (IBM 7955) to connect to the identical Stretch machine that hosted Harvest, as a result of no present knowledge storage applied sciences may sustain with the pc’s staggering throughput. Stretch dealt with the enterprise of staging tapes from the library to the drives—utilizing Tractor’s automated cassette handler. Stretch additionally coordinated studying knowledge in from Tractor and writing outcomes again out from Harvest. Harvest, in flip, did all its precise computing on the system’s shared important reminiscence.
Within the early Sixties, and even after Tractor and Harvest had been put in, hard-drive knowledge storage was in its infancy. For code-breaking jobs of the scale Harvest was taking up, disk storage would have been impractical when it comes to each price and sheer flooring area. So Tractor needed to be primarily based round tape storage.
Every tape was sealed inside a case constructed like a boombox—twin encased reels beneath a window, carried by a deal with—and, at 6 to 7 kilograms, about as heavy as a bowling ball. Consider a Tractor cassette as an outsize predecessor of the audiocassette, which might come alongside a decade later, and holding some 120 megabytes of knowledge on a reel of tape 550 meters lengthy. Every storage unit housed as much as 160 of those cassettes.
An IBM technician holds one of many knowledge cassettes used with Harvest’s automated Tractor tape drives. IBM
When Harvest launched in 1962, it had three automated cartridge models, every serving two drives. So the obtainable on-line storage throughout the three Tractor models totaled a surprising 44 gigabytes. That’s greater than 190 instances as a lot capability because the IBM 2314 disk storage system, introduced in 1965, which held 233 megabytes throughout its full complement of eight drives.
Tractor needed to run constantly, swapping cassettes out and in, 24 hours a day, seven days every week. The system’s tape-handling pace was tuned to maintain tempo with Harvest’s personal urge for food for knowledge. The custom-built robotic mechanism for retrieving the cassettes was a servo-driven arm that traversed the system’s storage racks. It fetched a cassette from its slot and delivered it to a handler or acquired a cassette from one of many handlers and returned it to storage.
Operating at 6 meters per second, Tractor’s tapes zipped previous the learn/write heads sooner than the attention may monitor. Software program operating on Stretch dealt with the cassette shuttling in addition to studying and writing. For one among Tractor’s drives to maneuver from the completion of processing one tape to studying the following took about 18 seconds, assuming it had already been fetched and was able to mount. Robotically fetching a cassette from the storage unit and making ready it for studying required no human dealing with or enter in any way.
Along with Tractor, the system had normal reel-to-reel tape drives connected to Stretch. Harvest’s technicians usually used the traditional drives for importing and exporting knowledge to and from different methods; there was no different sensible technique to get giant datasets into or out of Harvest. Tractor may additionally retailer everlasting recordsdata and retrieve them straight from its tape libraries when a job required them. In different phrases, Tractor’s substantial cassette libraries acted each as everlasting knowledge storage and as a spot to carry transient knowledge for processing by Harvest.
No system within the business computing world of 1962 got here near Tractor’s gigabytes of concurrently accessible knowledge. At most laptop facilities on the time, “obtainable” knowledge meant bodily racks of tape standing someplace close to its drives—accessible solely as quickly as an operator may manually pull a reel and thread it onto a machine, one by one, over the course of a shift.
Alpha Was Harvest’s Customized-Constructed Programming Language
Created collectively by IBM and NSA, the Alpha language existed solely to program Harvest’s streaming dataflow engine for code-breaking work. In accordance with a declassified Pentagon history of NSA computers, Alpha stood for Superior Language for Programming Harvest.
Alpha allowed the programmer to outline the alphabet during which code-breaking knowledge can be processed. The language additionally included two uncommon characters with no equal in typical computing till years later, when Multics and Unix launched wildcard characters. A “scab” (which was represented on Harvest’s enter keyboard, a repurposed early IBM Selectric typewriter, by a “?”) stood for a personality that was actual however unknown. And a “pad” (represented by a clean area) was a null or spacer. These characters offered flexibility of illustration for code breaking jobs, during which unknown or unsure characters had been commonplace.
A Harvest operator sorts on one of many important system consoles, a repurposed IBM Selectric typewriter.IBM
The principles governing Alpha’s operations on strings anticipated different trendy rubrics, like “not a number”—a designation describing an unknown worth in a dataset that may propagate by way of calculations, relatively than silently corrupting them. Strings in Alpha may be aggregated into cords, and cords into ropes, giving cryptanalysts a hierarchical vocabulary for describing complicated intercepts.
Allen wrote a ultimate technical report on her part of the Harvest software program when her a part of the venture concluded—and simply as promptly misplaced entry to it. “I spent the nice a part of a summer time on that,” she recalled in 2001. “And it simply disappeared into Fort Meade someplace.”
Changing an Irreplaceable Machine
By 1971, in accordance with NSA analyst Looney, the machine was operating at its highest utilization ever—115 hours of manufacturing every week, or greater than two-thirds of the time. But the variety of jobs it processed had been dropping since 1967. Atypical data-processing work, Looney famous, was by 1972 migrating to newer, general-purpose machines, leaving Harvest to focus on the very giant, specialised jobs no different system may deal with.
At its tenth anniversary of operations, Looney concluded, Harvest was a machine “conceived within the fifties, born within the sixties, and irreplaceable within the seventies.”
He obtained the final half unsuitable.
On 27 February 1976, operators shut down Harvest for the final time. A {custom} mechanical element within the Tractor tape library had worn out, and the producer of the half was now not in enterprise. By then Harvest had run constantly for almost a decade and a half—by way of the roughest shut name within the historical past of mutually assured destruction and into the age of détente—processing intercepts at a charge no civilian machine may contact. By the point it retired, Harvest had outlived a number of generations of business computing.
A placard commemorates the 1976 decommissioning of IBM’s Harvest laptop on the NSA’s headquarters in Fort Meade, Md. Nationwide Cryptologic Museum
Any individual on the NSA determined to commemorate the machine with a mock telegram, written beneath Harvest’s identify on the machine’s final day (and now preserved within the company’s archives). “I first started operations at NSA. Though not extensively identified, I used to be most likely the biggest, quickest, and most technically superior laptop system on this planet,” the telegram mentioned. “And now, fourteen years later, the time to retire has come. The price of my repairs and operation has been overtaken by extra trendy equipments and the newer applied sciences.”
The NSA finally changed Harvest with the landmark Cray-1 supercomputer. The Cray-1 was constructed from sooner, extra tightly integrated circuits that would outperform Harvest’s ageing transistors at almost any job, together with textual content processing. Though the Cray was designed primarily for numeric and scientific computing, it offered throughout many fields—which finally made the supercomputer win out as soon as Harvest’s custom-built text-processing {hardware} was now not well worth the repairs for only one buyer.
The secrecy that shrouded Harvest meant it may declare no lineage of quick successors. However the concepts it pioneered didn’t disappear—they resurfaced, many times, within the years that adopted.
Tractor’s automated tape library was the forerunner of the robotic storage silos that will become standard in enterprise data centers about 20 years later. Harvest’s pipeline structure prefigured the dataflow computing movement of the 1980s. The continual pattern-detecting logic of its match models finds direct echoes in trendy hardware packet-inspection intrusion detectors and programmable network switches that right this moment route visitors by way of the web at wire pace.
Harvest didn’t discovered a dynasty. However, in its time, it steadfastly pointed towards the longer term—in a number of instructions without delay.
This text seems within the September 2026 print concern as “The Lost History of IBM’s Cold–War Code Breaoker.”
