In case you grew up within the Nineteen Eighties or ’90s, you doubtless bear in mind shaky residence video footage, taken with a handheld camcorder, of household gatherings, holidays, and different occasions.
Camcorders mixed a digital camera with a video recorder. They included a rechargeable battery, a slot for a videotape, and a shoulder strap. Most had been outfitted with an optical zoom lens and a small, articulating display screen—a show mounted on a hinge that might tilt and rotate. The operator may examine the display screen to view what was being recorded.
The consumer’s pure hand and physique actions when filming led to jittery footage. One of the simplest ways to get a gentle shot was to put the camcorder on a tripod or a gimbal: a motorized stabilizer.

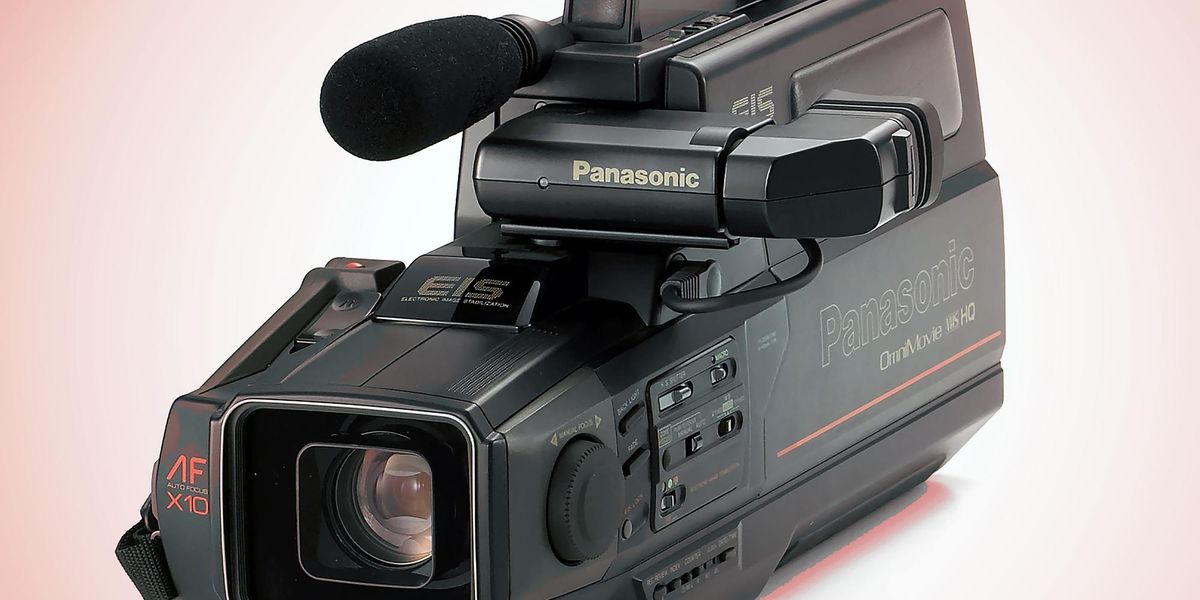

There have been fewer poor-quality recordings after Panasonic launched its PV-460 VHS camcorder in 1988. It was the primary video digital camera to incorporate an optical picture stabilizer, which compensated for actions. Stabilization options at the moment are commonplace in at this time’s cameras together with ones present in smartphones and drones.
The PV-460 camcorder was honored as an IEEE Milestone on 9 July. The dedication ceremony was held in Kadoma, Japan, on the Panasonic Museum, which shows the corporate’s previous merchandise.
The IEEE Kansai Section in Japan sponsored the Milestone.
“The discharge of the PV-460 basically reworked private videography, enriching the way in which folks captured journey, occasions, and household recollections,” part members wrote in assist of the Milestone nomination. Their proposal is offered here.
“Its picture stabilization options democratized video creation by dramatically reducing technical limitations, permitting strange folks to specific themselves with newfound inventive freedom,” they wrote. “Past the house, picture stabilization know-how discovered essential functions in specialised fields, contributing to developments in areas resembling academic media and telemedicine.”
The historical past of camcorders
Earlier than the camcorder was invented in 1982, folks filming occasions within the Nineteen Seventies and early Nineteen Eighties used two items of kit: a video digital camera and a separate video cassette recorder (VCR), which had been related by a multipin cable. The digital camera was concerning the dimension of a toaster, and the VCR could possibly be as giant as a suitcase. To file, the particular person operated the digital camera with one hand and carried the VCR within the different or rested it on a shoulder. The cable transmitted the pictures from the digital camera to the cassette.
The PV-460 was made attainable by a number of groundbreaking improvements, in line with the Milestone proposal, one among which dates again to the Fifties.
In 1956 Italian producer Durst launched its Automatica, thought-about one of many first cameras to make use of automated publicity know-how. By combining a light-weight meter with the digital camera’s inner mechanical techniques, the know-how eliminated the need of calculating publicity settings by hand when the lighting shifted or different circumstances modified. The innovation enabled beginner photographers to take respectable footage.
The subsequent breakthrough know-how—autofocus—was invented in 1973 by Norman Stauffer, a supervisor of analysis for Honeywell in Littleton, Colo. It makes use of a sensor, a management system, and a motor to give attention to a specific space. The invention led to the event of early digital autofocus cameras, which eradicated the necessity for photographers to manually regulate the lens. Stauffer obtained the 1990 IEEE Masaru Ibuka Consumer Technology Award for his invention.
“The discharge of the PV-460 basically reworked private videography, enriching the way in which folks captured journey, occasions, and household recollections.” —Milestone sponsors
U.S. inventor Jerome Lemelson is credited with growing applied sciences that underpinned the camcorder, in line with MIT. Within the Fifties and ’60s, Lemelson filed a number of patent functions associated to video and audio recording units. In 1980 he was granted patents associated to a conveyable video digital camera system. In 1982 JVC and Sony used the applied sciences to develop what they known as the digital camera/recorder, which turned often called a camcorder.
Sony launched the primary handheld camcorder in 1983: the Betamovie BMC-100P. It used the Betamax videocassette format and will file as much as 3.5 hours of footage on 1.27-centimeter cassette tape. The operator rested the two.5-kilogram camcorder on high of a shoulder to shoot footage. It offered for round US $2,000 on the time (roughly $33,400 at this time). The machine couldn’t rewind or play again tapes; it may solely file.
Different electronics firms together with JVC quickly launched their very own fashions utilizing the VCR format, which ultimately changed Betamax.
Over time, camcorders turned extra compact.
However not one of the firms may repair the shaky-footage downside.
Fixing a shaky downside
A group at Panasonic led by researcher Mitsuaki Oshima took on the duty of picture stabilization: detecting and correcting small digital camera actions, known as digital camera shake, in line with the proposal. Oshima, an IEEE life senior member, is now an honorary Fellow at Panasonic.
“The actions that wanted to be detected and corrected included horizontal, vertical, and rotational motions—particularly pitch, yaw, and roll,” the Milestone sponsors wrote. “Rotational movement, particularly, turns into the dominant issue affecting picture stability throughout high-magnification taking pictures. Due to this fact, the event group centered on detecting rotational movement and commenced growing an angular velocity sensor.”
An AVS, basically a gyroscope, detects how shortly an object is altering its orientation in area.
Sensors able to detecting angular velocity had been giant and costly on the time, making them unsuitable for client video cameras, the sponsors wrote. What was wanted, they stated, was a compact and cheap model.
Oshima and his group constructed a high-performance, small, low-cost vibration-type gyroscope. The stabilization mechanism included a miniaturized sensor paired with an optical-axis correction mechanism.
The mechanism adjusts the lens or image sensor to counteract bodily shifting and vibrations, guaranteeing that the sunshine path stays centered on the sensor—which is essential for maximizing sharpness and high quality, the Milestone sponsors wrote.
“The system detects lens displacement attributable to digital camera shake and instantly compensates for it, guaranteeing steady video footage,” they wrote. “Consequently, the consequences of digital camera shake are minimized, permitting customers to seize easy and regular movies with ease.”
With out Oshima’s picture stabilization know-how, the PV-460 wouldn’t have been developed and launched in 1988.
The know-how was patented and broadly licensed by different firms. It has develop into an ordinary characteristic in quite a lot of imaging functions.
Awards and accolades
The PV-460 gained instantaneous recognition when it debuted in June 1988. It obtained rave opinions at that yr’s Consumer Electronics Show.
Panasonic obtained a 100 Award in 1989 from R&D World journal for “the event of a VHS camcorder with an antishake mechanism.”
Oshima’s analysis paper, “VHS Camcorder With Electronic Image Stabilizer,” and others can be found within the IEEE Xplore Digital Library.
To be taught extra about historic figures in engineering, IEEE Milestones, and IEEE History Heart packages and occasions, take a look at The Institute’s IEEE Tech History collection. IEEE Spectrum additionally covers features of tech history.
Milestone plaque show
The Milestone plaque is to be displayed on the bottom flooring of the Panasonic Museum, which is open to the general public. The museum is positioned close to the now-shuttered Panasonic analysis lab the place the know-how was developed. The plaque reads:
“In 1988 the pioneering PV-460 camcorder geared up with picture stabilization for enabling easy and regular video seize was launched by Panasonic. By pairing a miniaturized vibrating-structure gyroscope sensor with an optical-axis correction mechanism, the PV-460 eradicated the jitter attributable to hand movement. Broad worldwide licensing of this patented scheme made it an ordinary characteristic in movie and digital cameras, smartphones, and associated imaging units.”
Chosen by the IEEE History Committee and endorsed by the IEEE Board of Directors, IEEE Milestones acknowledge excellent technical developments world wide which are at the least 25 years outdated. The Milestone program is run by the IEEE history and heritage group.
