What may you do if you happen to may make a circuit hint by simply bending a chunk of paper? How about bridging trendy applied sciences and conventional handicrafts whereas offering alternatives for studying abilities in each.
As a part of our interdisciplinary analysis into digital craftsmanship on the MEI Lab at the School of Creative Media, City University of Hong Kong, we got here throughout research that demonstrated how to impregnate paperlike material (technically a “nonwoven textile”) with the form of liquid metal used to make conductive ink. Initially, the impregnated materials is nonconductive as a result of an insulating oxide layer varieties that encapsulates microscopic droplets of the liquid metal. Nonetheless, making use of strain by way of formed molds will crack open the insulating layer, permitting neighboring particles to merge, and thus creating conducting areas within the form of the mildew.
Each of us have been launched as youngsters to origami and kirigami (just like origami, besides that slicing is allowed along with folding). We, together with our colleagues, determined to see if these conventional methods may very well be used on the brand new materials to get rid of the necessity for molds. Our objective was to permit crafters to make hybrid papercraft creations that contained simply built-in components comparable to LEDs and motors.
Specifically, we have been all for the potential of combining the separate phases of making a papercraft object and including electrical conductors. Earlier approaches to creating electrified papercraft objects relied on including a separate versatile conductor—comparable to adhesive copper tape—to the paper. This will increase the trouble required and runs the danger of making open circuits because the conductive materials conforms to the article’s form.

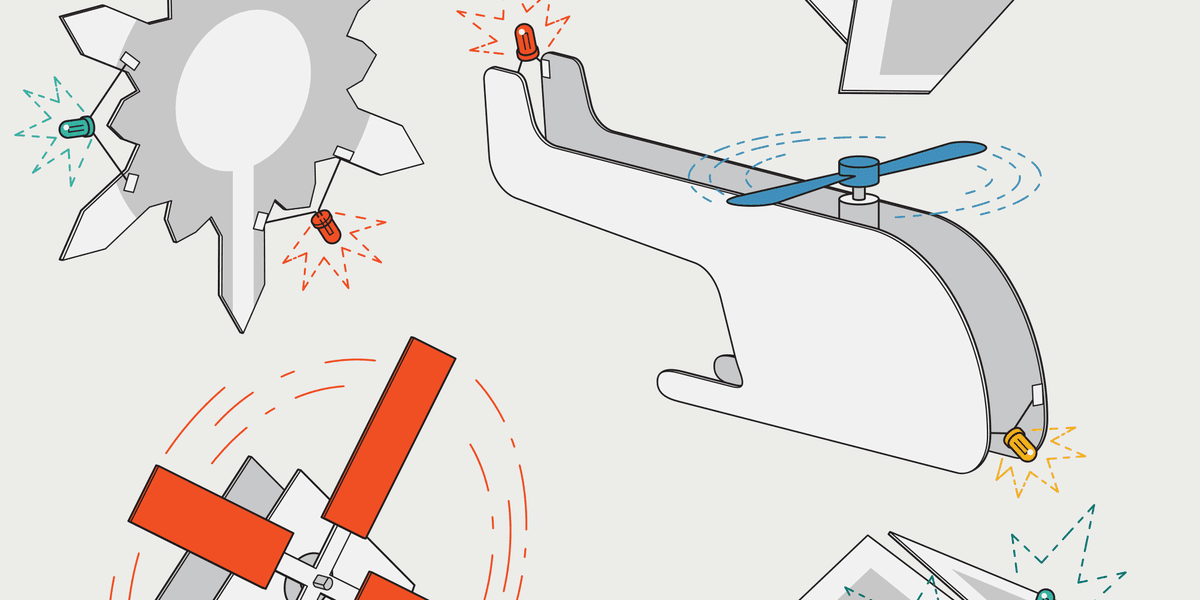

Isopropanol and a gallium-indium liquid materials are used to impregnate a paperlike materials that’s 55 p.c polyester and 45 p.c cellulose. Digital parts comparable to LEDs and motors are held in place with masking tape. James Provost
Our first step was to see if the pressures concerned in bending and slicing alone could be enough to create conductive traces. We turned frequent guests to our college’s materials science and engineering division to manufacture samples after which to borrow tools to characterize their conduct.
We quickly confirmed that the pressures concerned in folding and slicing—starting from 2.5 to 100 megapascals—have been sufficient to create conductive traces. We additionally confirmed that ordinary dealing with of the paper didn’t unintentionally create conductive paths.
We made a lot of adjustments to the unique technique for creating the impregnated paper. For instance, as an alternative of immersing the paper in a mix of isopropanol and liquid metallic, we used an airbrush to spray the combination onto the paper. That allowed us to range how a lot was deposited on the paper and to make use of cardboard stencils to masks some areas from being impregnated, permitting folding and slicing in these areas with out creating undesirable conductive traces. We additionally experimented with the ratios of isopropanol and liquid metallic.
We turned frequent guests to our college’s supplies science and engineering division.
After optimizing the blending ratios and quantity utilized by way of airbrush, we have been left with a cloth that reliably conducts with a resistance of 23.18 ohms per centimeter for minimize edges and 4.4 Ω/cm for folded edges. The folded edges retain their conductivity even when later flattened out, and the conductivity is similar on both aspect of the paper. We estimate the mixed price of the paper and liquid metallic (out there from many on-line distributors) is about US $1.80 to make a 10- by 10-cm piece.
The following step was attaching digital parts to the traces. To make the connections extra versatile, we minimize down the inflexible leads of LEDs and hooked up conductive thread to the stumps. We then held the threads in place utilizing masking tape. Equally, we related conductive thread to the terminals of an influence provide.
As our objective was to make use of this materials educationally, we now wanted to make it simple for a newbie—whether or not in papercraft or electronics—to strive it out. We created a toolkit, dubbed LiqMetCraft. This consists of all of the required supplies, plus a browser-based software program instrument that lets the consumer choose or create designs after which offers steerage on bodily building.
We created three variations of LiqMetCraft. The primary is predicated on Chinese language papercraft through which a chunk of paper is folded right into a fanlike section after which minimize to create a radially symmetric design. We offered circles of paper with a doughnot-shape impregnated area, with an untreated area that created a niche within the donut. We hooked up optimistic and unfavourable terminals to both aspect of the hole. The consumer may specify within the software program what number of occasions they needed to fold the disk after which draw potential cuts, receiving instant suggestions on what the unfolded disk would seem like, in addition to steerage on learn how to place LEDs.
To make our paper pattern, isopropanol and liquid metallic are blended in particular ratios whereas being cooled by an ice tub. Sonic waves are used to make sure the liquid metallic breaks up into microscopic droplets. The combination is then utilized by way of airbrush, whereas stencils forestall some areas being coated for various papercraft templates. James Provost
The second model of LiqMetCraft was based mostly on origami. We provided rectangular items of paper with two conductive areas separated by a border down the center. The software program instrument offered templates for 12 origami designs, with step-by-step directions for folding them. As soon as the venture was accomplished, the consumer may add parts, comparable to a motor, by taping them to the folds.
The ultimate model supported 3D paper mannequin making. On this case, the preliminary paper provided was a rectangle with an untreated rectangular central space. By slicing this paper in half after which additional slicing the halves into patterns separated by a spacer, the consumer may make varied self-standing fashions. The software program allowed the consumer to attract a sample on display, after which have a slicing machine produce a template for slicing the impregnated paper.
We had 42 members, evenly divided into three teams, check out the totally different variations. All discovered it simple to make use of, and we have been pleasantly stunned that some members moved past the provided designs to their very own creations.
For full particulars of the present course of, see our open access LiqMetCraft research paper printed in CHI ‘26: Proceedings of the 2026 CHI Convention on Human Factors in Computing Methods. Sooner or later, we plan to strive totally different substrates for the impregnating answer, in addition to discover additional sorts of papercraft, comparable to pop-up books. We’re additionally all for growing methods to make use of the fabric to help inputs in addition to outputs by setting up switches and potentiometers immediately out of the fabric. Think about conventional papercraft creations turning into interactive gadgets!
This text seems within the July 2026 print concern.
