By many estimates, quantum computers will want millions of qubits to appreciate their potential functions in cybersecurity, drug development, and different industries. The issue is, anybody who has wished to concurrently management tens of millions of a sure form of qubits has run into the issue of attempting to manage tens of millions of laser beams.
That’s precisely the problem that was confronted by scientists engaged on the MITRE Quantum Moonshot project, which introduced collectively scientists from MITRE, MIT, the College of Colorado at Boulder, and Sandia National Laboratories. The answer they developed got here within the type of a picture projection know-how that they realized may be the repair for a number of different challenges in augmented reality, biomedical imaging, and elsewhere. The machine is a one-square-millimeter photonic chip able to projecting the Mona Lisa onto an space smaller than the dimensions of two human egg cells.
“Once we began, we actually by no means would have anticipated that we’d be making a know-how that may revolutionize imaging,” says Matt Eichenfield, one of many leaders of the Quantum Moonshot mission, a collaborative analysis effort centered on growing a scalable diamond-based quantum pc, and a professor of quantum engineering on the College of Colorado at Boulder. Every second, their chip is able to projecting 68.6 million particular person spots of sunshine—referred to as scannable pixels to distinguish them from bodily pixels. That’s greater than fifty instances the aptitude of earlier know-how, reminiscent of micro-electromechanical systems (MEMS) micromirror arrays.
“We’ve got now made a scannable pixel that’s on the absolute restrict of what diffraction permits,” says Henry Wen, a visiting researcher at MIT and a photonics engineer at QuEra Computing.

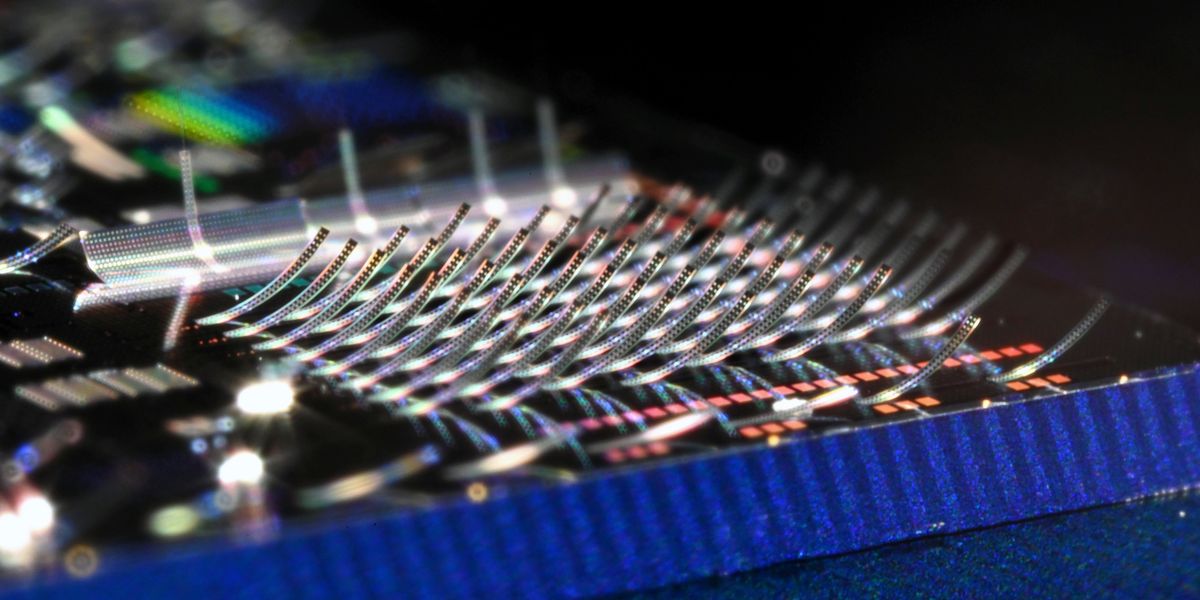

The chip’s distinguishing function is an array of tiny micro-scale cantilevers, which curve away from the aircraft of the chip in response to voltage and act as miniature “ski-jumps” for gentle. Gentle is channeled alongside the size of every cantilever by way of a waveguide, and exits at its tip. The cantilevers include a skinny layer of aluminum nitride, a piezoelectric which expands or contracts beneath voltage, thus transferring the micromachine up and down and enabling the array to scan beams of sunshine over a two-dimensional space.
Regardless of the magnitude of the crew’s achievement, Eichenfield says that the method of engineering the cantilevers was “fairly clean.” Every cantilever consists of a stack of a number of submicrometer layers of fabric and curls roughly 90 levels out of the aircraft at relaxation. To realize such a excessive curvature, the crew took benefit of variations within the contraction and enlargement of particular person layers attributable to bodily stresses within the materials ensuing from the fabrication course of. The supplies are first deposited flat onto the chip. Then, a layer within the chip under the cantilever is eliminated, permitting the fabric stresses to take impact, releasing the cantilever from the chip and permitting it to twist out. The highest layer of every cantilever additionally includes a sequence of silicon dioxide bars working perpendicular to the waveguide, which preserve the cantilever from curling alongside its width whereas additionally bettering its length-wise curvature.
A micro-cantilever wiggles and waggles to mission gentle in the fitting place.Matt Saha, Y. Henry Wen, et al.
What was extra of a problem than engineering the chip itself was determining the main points of really making the chip mission photographs and movies. Understanding the method of synchronizing and timing the cantilevers’ movement and lightweight beams to generate the fitting colours on the proper time was a considerable effort, in response to Andy Greenspon, a researcher at MITRE who additionally labored on the mission. Now, the crew has efficiently projected quite a lot of movies from a single cantilever, together with clips from the film A Charlie Brown Christmas.
The chip projected a roughly 125-micrometer picture of the Mona Lisa.Matt Saha, Y. Henry Wen, et al.
As a result of the chip can mission so many extra spots in any given time interval than any earlier beam scanners, it may be used to manage many extra qubits in quantum computer systems. The Quantum Moonshot program’s mission is to construct a quantum pc that may be scaled to tens of millions of qubits. So clearly, it wants a scalable method of controlling every one, explains Wen. As an alternative of utilizing one laser per qubit, the crew realized that not each qubit wanted to be managed at each given second. The chip’s means to maneuver gentle beams over a two-dimensional space, would permit them to manage all the qubits with many fewer lasers.
One other course of that Wen thinks the chip may enhance is scanning objects for 3D printing. Right this moment, that usually includes utilizing a single laser to scan over your complete floor of an object. The brand new chip, nonetheless, may probably make use of hundreds of laser beams. “I feel now you possibly can take a course of that will have taken hours and possibly convey it all the way down to minutes,” says Wen.
Wen can be excited to discover the potential of various cantilever shapes. By altering the orientations of the bars perpendicular to the waveguide, the crew has been capable of make the cantilevers curl into helixes. Wen says that such uncommon shapes could possibly be helpful in making a lab-on-a-chip for cell biology or drug development. “Loads of these things is imaging, scanning a laser throughout one thing, both to picture it or to stimulate some response. And so we may have considered one of these ski jumps curl not simply up, however really curl again round, after which transfer round and scan over a pattern,” Wen explains. “If you happen to can think about a construction that can be helpful for you, we should always strive it.”
