Lately I observed an irresistible provide on Craigslist: a Majestic 3C70 AM/shortwave radio for simply US $50. This mannequin dates from the Nineteen Thirties, when such radios got here in attractive picket cupboards. The specimen I found was nonetheless within the possession of the unique proprietor, who used to take heed to it together with her household when she was just a little woman. The wooden and speaker material had been properly preserved, in all probability wanting a lot as they when Japan attacked Pearl Harbor. I snatched it up.
I knew on the very least I’d must replace a bunch of capacitors. However after scrutinizing the underside of the chassis, I noticed I’d be doing much more, as a lot of the unique wire insulation had disintegrated. Thus started a journey that ultimately led me to construct my very own model of a vital piece of restoration know-how: a dim-bulb tester.
My journey began with on-line looking that turned up a circuit diagram for my radio, together with loads of recommendation from vintage-electronics restoration specialists. The chief piece of knowledge was “Watch out.” Even when new, electronics of the vacuum-tube period might be harmful. Being the cautious sort, I wished to take all acceptable security measures.
Specifically, when working with tube-era electronics, it is best to resist the urge to simply plug it in to see if it really works. Many years-old paper and electrolytic capacitors are virtually guaranteed to be bad. And far else might be amiss as nicely. As an alternative, make the repairs and upgrades you identify are wanted first. Even then, don’t simply plug in your relic and flip the facility change. Higher to start out it up gently to search for indicators of bother.
How Does a Dim-Bulb Tester Work?
However how do you activate previous tools gently? That idea was international to me, having grown up within the transistor period. And that is after I realized about dim-bulb testers. They benefit from the truth that the resistance of an peculiar incandescent mild bulb will increase markedly because the filament heats up. The tester sits between your machine and the wall plug. The bulb is wired in sequence to the facility line and acts as a present limiter: Even when a element or wire in your machine fails and causes a brief, the present flowing into the machine gained’t exceed the present that may usually move by the bulb. You may management the utmost present through the use of bulbs of various wattages.

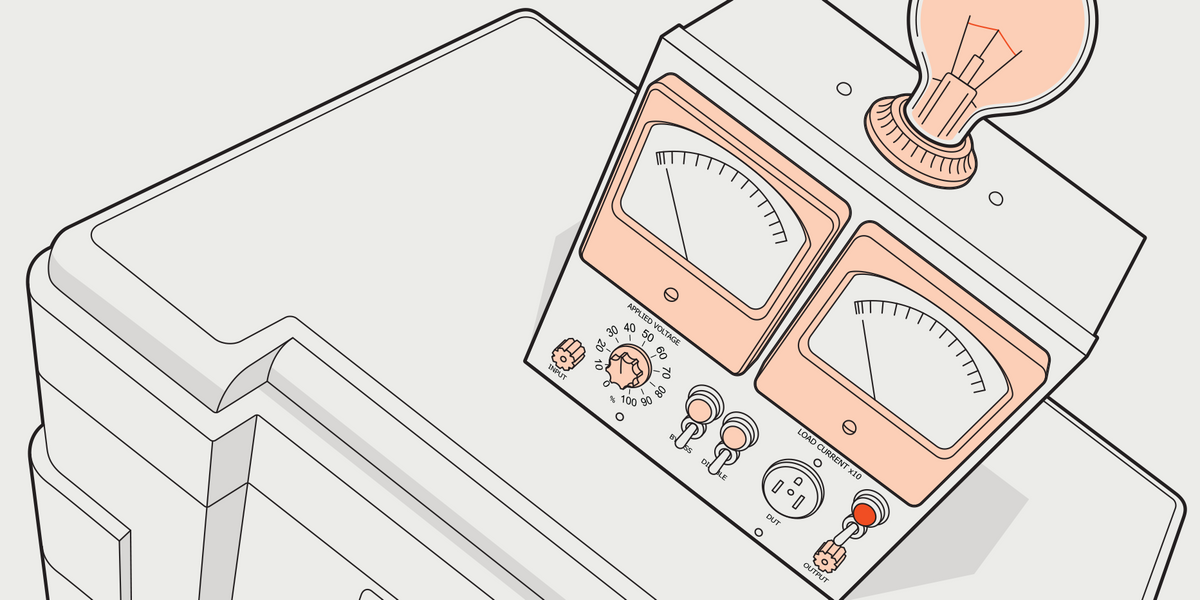

Caption: As a result of the dim-bulb tester depends on an incandescent bulb [top middle], a sure retro look is assured. I leaned into this aesthetic through the use of classic analog meters [top left and right], and having a steel entrance panel custom-made by an indication maker [bottom].James Provost
Certain, you’ll be able to cobble collectively such a tester utilizing simply an outlet field, a lamp base, and a change. However I made a decision to go all out on the security entrance and construct a extra absolutely featured dim-bulb tester, one thing akin to a design that I saw online that features a variable transformer together with panel meters to observe voltage and present. And for enjoyable, I made a decision to provide my tester a classic look.
I hunted on eBay for classic bits and items (or ones that might move as classic). Whereas the hassle to make my tester look previous elevated the fee and slowed development, I used to be starting to love the thought of restoring previous electronics as a brand new pastime, so I figured: Why not?
The top end result was a unit that included two Triplett analog panel meters that, greatest I can work out, date from shortly after the Second World Struggle. It additionally consists of three indicator lights that should be from the Nineteen Fifties. They adorn a entrance panel that I fabricated by ordering a custom aluminum sign and slicing the openings utilizing gap saws.
The dim-bulb tester permits me to ramp up the voltage utilized to previous tools. The resistance of the bulb prevents damaging present flows to the tools whereas on the lookout for any indicators of troublet.James Provost
Choosing the right enclosure for my ersatz check instrument was one of many larger challenges. Massive enclosures are usually costly, and I additionally struggled to search out one thing that wouldn’t have seemed misplaced within the TV restore outlets of my youth. The answer was to buy a broken classic check instrument (a tube-equipped signal generator), pull the chassis out, and use its painted metal enclosure. I purchased it for lower than I might’ve paid for a brand new enclosure. I additionally purchased a small assortment of incandescent light bulbs of various wattages. Assembling my tester was easy.
I wasn’t fairly accomplished, although. In my investigations into how restore vintage electronics safely, I realized about utilizing an isolation transformer to assist defend in opposition to shocks. I toyed with the thought of constructing one into my dim-bulb tester’s enclosure, however I made a decision it was extra sensible to buy a stand-alone unit. I acquired a used one for a very good worth, but it surely took some work to repair and modify it in order that it actually remoted the enter from the output. (Oddly sufficient, industrial items don’t usually provide full isolation—you need to mod them for this.) I determine that I can simply plug my machine into my dim-bulb tester, plug the tester into the isolation transformer, then plug the transformer into the wall.
With my accomplished tester able to go, I rigorously examined the wiring and elements of my Majestic radio and ordered what I feel I’ll want to repair it. I’ve simply acquired the field of elements from Mouser, so restore and reside testing will start shortly. I ought to add that whereas engaged on my dim-bulb tester, I couldn’t resist making one other $50 antique-radio buy: a Zenith AM/FM tabletop radio from the late Nineteen Fifties. The individual I purchased it from mentioned that it really works, however I now know there’s a proper means and a incorrect approach to confirm that assertion. So I’ve acquired a lot to maintain me busy in my newfound pastime—together with the gear I must pursue it safely.
