A brand new chip part designed by MIT researchers guarantees to increase the attain of the Internet of Things into 5G. The invention represents a broader push for 5G-based IoT tech—utilizing the telecom commonplace’s low latency, energy efficiency, and capability for large device connectivity. The brand new analysis additionally alerts an essential step towards purposes that embrace smaller, low-power health monitors, smart cameras, and industrial sensors, as an illustration.
Extra broadly, the prospect of shifting the IoT onto 5G means extra issues can join extra shortly with probably larger knowledge speeds and fewer battery drain. It additionally means trickier and extra difficult circuits will have to be toiling away behind the information streams.
And doing all this utilizing 5G standards somewhat than equal 4G/LTE or Wi-Fi networks arguably means IoT is increasing its vary and scope. It’s shifting past comparatively modest-sized IoT deployments to broader networks boasting the potential for lots of of nodes or extra.
To make clear, nevertheless, says Soroush Araei, a PhD candidate at MIT in electrical engineering and computer science, IoT-over-5G doesn’t imply that each node in a community will immediately be getting its personal cellphone quantity.
“The principle purpose right here is that you’ve a single radio receiver that may be reused for various purposes,” Araei says. “You have got a single piece of {hardware} which is versatile, and you may tune it throughout a large frequency vary in software program.”
Utilizing 5G requirements somewhat than 5G wireless networks permits IoT devices to frequency hop, to sip their battery energy, and to make use of massive-connectivity methods that permit for as much as one million devices per square kilometer.
The way to Make a 5G IoT Chip
Then again, the truth that IoT builders must date been gradual to undertake 5G underscores simply how tough the {hardware} problem is.
“For IoT, power efficiency is essential,” says Eric Klumperink, affiliate professor of IC design on the University of Twente in Enschede, Netherlands. “You desire a first rate radio efficiency for very low energy—[using] a small battery and even vitality harvesting.”
However with an increasing number of units connecting to an increasing number of networks, 5G or in any other case, different considerations rear their heads too.
“In a world more and more saturated with wi-fi alerts, interference is a serious downside,” says Vito Giannini, a technical fellow at Austin, Tex.-based L&T Semiconductor Technologies. (Neither Giannini nor Klumperink had been concerned with the MIT group’s analysis.)
Utilizing 5G requirements probably addresses each points, Araei says. Particularly, he says, the MIT group’s new tech depends on a slimmed-down model of 5G that’s already been developed for IoT and different purposes. It’s referred to as 5G reduced capacity (or 5G RedCap).
“5G RedCap IoT receivers can hop throughout frequencies,” he says. “However they’re not required to be as low-latency because the top-tier 5G purposes [including smartphones].”
Against this, the best IoT chip that makes use of Wi-Fi would depend on a single frequency band—maybe 2.5 or 5 gigahertz—and will probably seize up if too many different units had been utilizing the identical channel.
Frequency hopping, nevertheless, requires strong radio communications {hardware} that may shortly switch between frequency channels as directed by the community after which ensure the frequency hops align with community directions and timing.
That’s a number of {hardware} and software program smarts packed right into a tiny chip that may be simply one in all lots of of motes affixed to pallets throughout a whole warehouse.
However options like which are simply the appetizers, Araei says.
The centerpiece of any viable 5G RedCap chip is the {hardware} that may flexibly work throughout a spread of frequencies, whereas nonetheless protecting to a tiny energy funds and a modest total price for the gadget. (The MIT group’s tech can solely be used for receiving incoming alerts; different chip parts can be wanted to transmit throughout a equally wide selection of frequencies.)
Right here the researchers pulled a number of methods from the world of analog circuits and power electronics. However somewhat than bulk parts layered and stacked like ceramic capacitors, the current work integrates these methods into an on-chip system to miniaturize RF frequency hopping cheaply and effectively. The researchers offered their work final month on the IEEE Radio Frequency Integrated Circuits Symposium in San Francisco.
“That is form of a switched-capacitor community,” Araei says. “You’re turning on and off these capacitors in a periodic method sequentially, which is known as ‘N-path construction.’ That usually provides you a low-pass filter.”
Which signifies that somewhat than utilizing a single capacitor within the circuit, the staff used a miniaturized bank of capacitors to flick on and off in tune with the needs of the frequency vary being obtained on the circuit.
And since they may put all this frequency-filtering wizardry on the front-end of the circuit, earlier than the amplifier touches the sign, the staff studies excessive effectivity at blocking out interference. In comparison with standard IoT receivers, they report, their circuit can filter out 30 occasions extra interference, whereas doing so utilizing solely single-digit milliwatts of energy.
In different phrases, the group seems to have designed some fairly efficient low-power 5G IoT receiver circuitry. So who can design a equally intelligent transmitter?
Do each of these, and somebody sometime might be in enterprise, says Klumperink. “There are arguments to be made for IoT-over-5G (or 6G),” he says. “As a result of spectrum is allotted and managed higher than advert hoc Wi-Fi connections.”

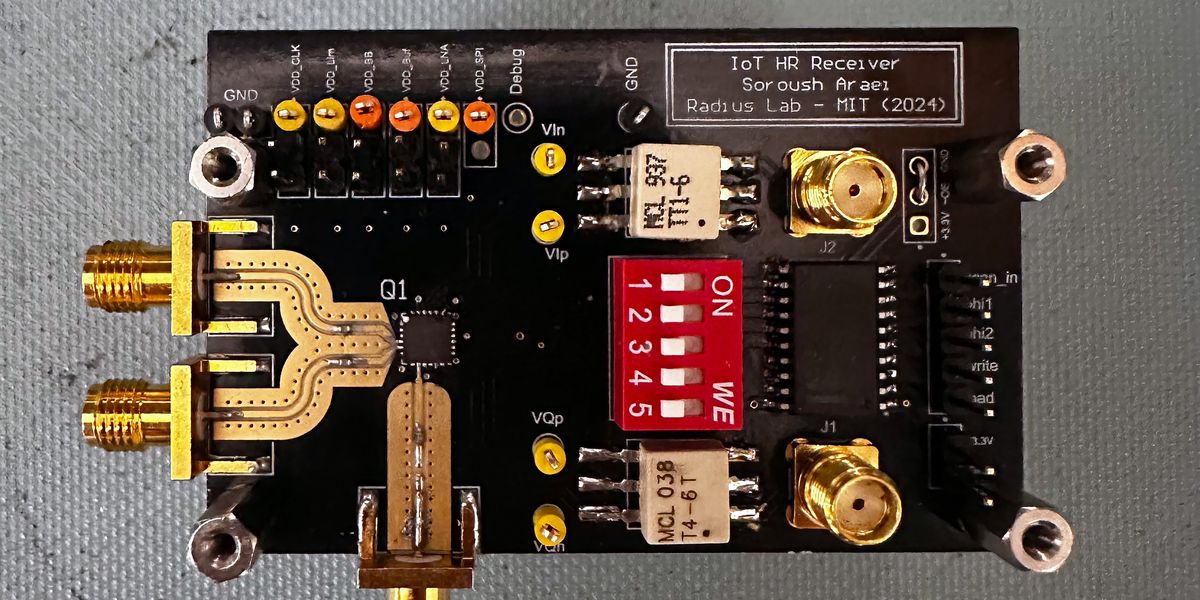

Operating the Internet of Issues over 5G realistically means working with very low power necessities. The MIT staff’s chip consumes lower than a milliwatt whereas nonetheless filtering out extraneous alerts.Soroush Araei
Is This the Stuff of 5G IoT Chips to Come?
The MIT group’s circuitry, Klumperink says, may conceivably be manufactured at a mainstream chip fab.
“I don’t see large hurdles because the circuit is carried out in mainstream CMOS expertise,” Klumperink says. (The group’s circuits demand solely a 22-nanometer fabrication course of, so it wouldn’t have to be a bleeding-edge foundry by any stretch.)
Araei says the staff goals subsequent to work on eliminating a necessity for a battery or different devoted energy provide.
“Is it potential to do away with that energy provide and principally harness the ability from the prevailing electromagnetic waves within the atmosphere?” Araei asks.
He says in addition they hope to increase the frequency vary for his or her receiver tech to cowl the entire frequency vary of 5G alerts. “On this prototype we had been in a position to obtain low frequencies of 250 megahertz as much as 3 GHz,” he says. “So is it potential to increase that frequency vary let’s say as much as 6 GHz, to cowl your complete 5G vary?”
If these numerous upcoming hurdles might be cleared, says Giannini, a spread of purposes most likely seem on the near-term horizon. “It provides a bonus for mobility, scalability, and safe wide-area protection in mid-range and mid-bandwidth situations,” he says of the MIT group’s work. He provides that the brand new circuit’s 5G IoT adaptability may make the tech nicely suited to, he says, “industrial sensors, some wearables, and good cameras.”
