AI is altering all the pieces in data centers: New AI-specific chips, new cooling techniques, and new storage drives. Now even the strategy for holding time is beginning to change, with an announcement from SiTime that the corporate has developed a brand new clock that’s optimized for AI workloads.
The corporate says the event will result in vital power financial savings and decrease prices for AI coaching and inference. SiTime was in a position to obtain these financial savings through the use of microelectromechanical systems (MEMS) because the core timekeeping element as an alternative of conventional quartz crystals.
Virtually each a part of a pc has some type of clock. CPUs, GPUs, community interface playing cards, switches, and typically even energetic interconnects include their very own timekeeping element. For extra conventional computing workloads, these clocks often fall into two classes: Quick, exactly timed clocks or clocks which might be well-synchronized throughout a number of GPUs (or CPUs), says Ian Cutress, chief analyst at Extra Than Moore and who works with SiTime.
“The issue with AI is that it’s doing each,” says Cutress. “You need your chip to go as quick as doable, however then you definately additionally need to synchronize throughout 100,000 chips.”

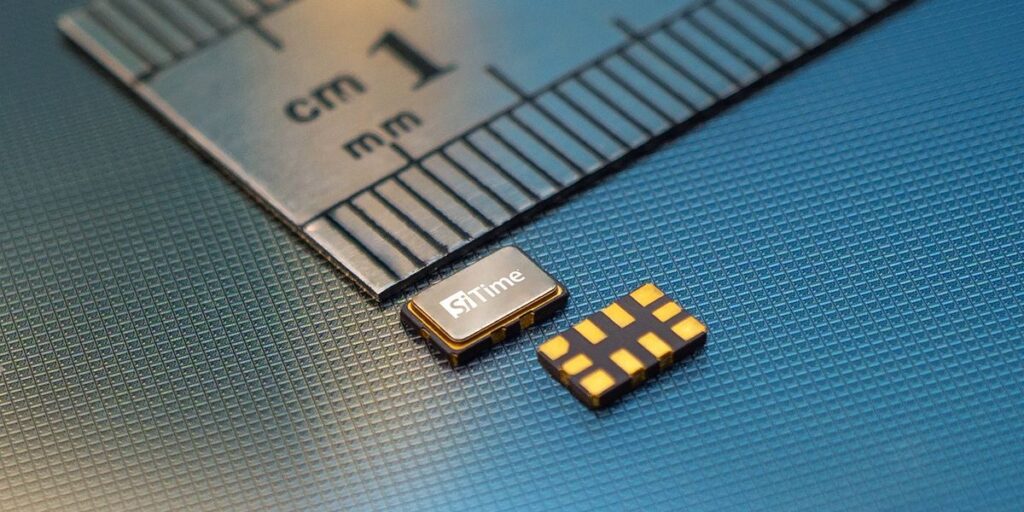

SiTime’s Tremendous-TCXO clock combines the performance of ultra-stable and well-synchronized clocks right into a single gadget, offering synchronization that’s 3 instances pretty much as good as a comparable quartz-based element at a bandwidth of 800 gigabits per second, in a chip thats 4 instances as small.
Higher Timing Results in Vitality Financial savings
AI is a data-hungry beast. And but, costly and power-guzzling GPUs sit idle as much as 57 percent of the time ready for his or her subsequent batch of knowledge. If knowledge may very well be served up extra rapidly, GPUs may very well be utilized in smaller quantities and extra effectively.
“You want quicker bandwidth. Since you want quicker bandwidth, you want higher timing,” says Priyush Sevalia, government vice chairman of selling at SiTime.
As well as, one can save numerous energy if GPUs will be put into sleep mode whereas they’re ready for extra knowledge to load, Cutress says. This, too, requires extra exact timing, such that the sleep-wake cycle can occur rapidly sufficient to maintain up with the information stream.
For AI, clocks not solely must be extra exact, but additionally synchronized completely throughout many GPUs. Massive AI models cut up their duties amongst many GPUs, with every one doing a small chunk of the calculation. Then, their outcomes are stitched again collectively. If one GPU lags behind the others, the entire calculation should look forward to that node. In different phrases, the computation is just as quick because the weakest hyperlink. All the GPUs stay turned on whereas they wait, so any such delay ends in power losses.
Excessive Time for MEMS Time
The timing have to be exact, properly synchronized, and sturdy—any mechanical vibrations or temperature swings should be compensated for to make sure they don’t throw off the computation. SiTime’s Tremendous-TCXO goals to mix all three necessities in a single gadget.
Sevalia says utilizing MEMS oscillator relatively than the standard quartz makes that mixture doable. Quartz oscillators use the vibrations of exactly machined quartz crystals—just like a tuning fork. In distinction, MEMS oscillators are manufactured, not machined, to resonate at a particular frequency. MEMS gadgets will be smaller, which makes them much less delicate to mechanical strains. They may also be extra exact.
“Crystal oscillators have been round for the reason that starting of time, since compute was a factor,” says Dave Altavilla, president and principal analyst at HotTech Vision & Analysis and who additionally works with SiTime. “We’ve improved that know-how dramatically since its inception. However MEMS takes it one other step additional past what a crystal is able to. In order that’s what I feel is being displaced out there by this new know-how is the previous approach of doing issues.”
SiTime’s MEMS-based options are already having some success—Nvidia’s Spectrum-X Change silicon already contains a SiTime device.
Sevalia says he expects the necessity for MEMS-based timing gadgets to proceed. The corporate is already planning even greater bandwidth gadgets, and so they’re hoping their improvements will lead to much more power financial savings. “We’re simply scratching the floor proper now by way of determining how a lot energy efficiency we will carry,” Sevalia says.
