Naveen Verma’s lab at Princeton University is sort of a museum of all of the methods engineers have tried to make AI ultra-efficient through the use of analog phenomena as a substitute of digital computing. At one bench lies essentially the most energy-efficient magnetic-memory-based neural-network laptop ever made. At one other you’ll discover a resistive-memory-based chip that may compute the most important matrix of numbers of any analog AI system but.
Neither has a industrial future, in response to Verma. Much less charitably, this a part of his lab is a graveyard.
Analog AI has captured chip architects’ creativeness for years. It combines two key ideas that ought to make machine learning massively much less power intensive. First, it limits the pricey motion of bits between reminiscence chips and processors. Second, as a substitute of the 1s and 0s of logic, it makes use of the physics of the stream of present to effectively do machine studying’s key computation.
As enticing as the thought has been, varied analog AI schemes haven’t delivered in a approach that might actually take a chunk out of AI’s stupefying power urge for food. Verma would know. He’s tried all of them.
However when IEEE Spectrum visited a yr in the past, there was a chip behind Verma’s lab that represents some hope for analog AI and for the energy-efficient computing wanted to make AI helpful and ubiquitous. As a substitute of calculating with present, the chip sums up cost. It’d seem to be an inconsequential distinction, but it surely may very well be the important thing to overcoming the noise that hinders each different analog AI scheme.
This week, Verma’s startup EnCharge AI unveiled the primary chip based mostly on this new structure, the EN100. The startup claims the chip tackles varied AI work with efficiency per watt as much as 20 instances higher than competing chips. It’s designed right into a single processor card that provides 200 trillion operations per second at 8.25 watts, aimed toward conserving battery life in AI-capable laptops. On high of that, a 4-chip, 1,000-trillion-operations-per-second card is focused for AI workstations.
Present and Coincidence
In machine studying, “it seems, by dumb luck, the primary operation we’re doing is matrix multiplies,” says Verma. That’s principally taking an array of numbers, multiplying it by one other array, and including up the results of all these multiplications. Early on, engineers seen a coincidence: Two basic guidelines of electrical engineering can do precisely that operation. Ohm’s Legislation says that you just get present by multiplying voltage and conductance. And Kirchoff’s Present Legislation says that in case you have a bunch of currents coming into a degree from a bunch of wires, the sum of these currents is what leaves that time. So principally, every of a bunch of enter voltages pushes present by means of a resistance (conductance is the inverse of resistance), multiplying the voltage worth, and all these currents add as much as produce a single worth. Math, finished.
Sound good? Nicely, it will get higher. A lot of the information that makes up a neural community are the “weights,” the issues by which you multiply the enter. And shifting that knowledge from reminiscence right into a processor’s logic to do the work is answerable for an enormous fraction of the power GPUs expend. As a substitute, in most analog AI schemes, the weights are saved in one in every of a number of kinds of nonvolatile memory as a conductance worth (the resistances above). As a result of weight knowledge is already the place it must be to do the computation, it doesn’t should be moved as a lot, saving a pile of power.
The mix of free math and stationary knowledge guarantees calculations that want simply thousandths of a trillionth of joule of energy. Sadly, that’s not almost what analog AI efforts have been delivering.
The Hassle With Present
The elemental drawback with any type of analog computing has at all times been the signal-to-noise ratio. Analog AI has it by the truckload. The sign, on this case the sum of all these multiplications, tends to be overwhelmed by the numerous potential sources of noise.
“The issue is, semiconductor units are messy issues,” says Verma. Say you’ve bought an analog neural community the place the weights are saved as conductances in particular person RRAM cells. Such weight values are saved by setting a comparatively high voltage throughout the RRAM cell for an outlined time period. The difficulty is, you may set the very same voltage on two cells for a similar period of time, and people two cells would wind up with barely completely different conductance values. Worse nonetheless, these conductance values may change with temperature.
The variations could be small, however recall that the operation is including up many multiplications, so the noise will get magnified. Worse, the ensuing present is then was a voltage that’s the enter of the following layer of neural networks, a step that provides to the noise much more.
Researchers have attacked this drawback from each a pc science perspective and a tool physics one. Within the hope of compensating for the noise, researchers have invented methods to bake some data of the bodily foibles of units into their neural community fashions. Others have centered on making units that behave as predictably as potential. IBM, which has finished extensive research in this area, does each.
Such strategies are aggressive, if not but commercially profitable, in smaller-scale programs, chips meant to supply low-power machine studying to units on the edges of IoT networks. Early entrant Mythic AI has produced a couple of era of its analog AI chip, but it surely’s competing in a discipline the place low-power digital chips are succeeding.

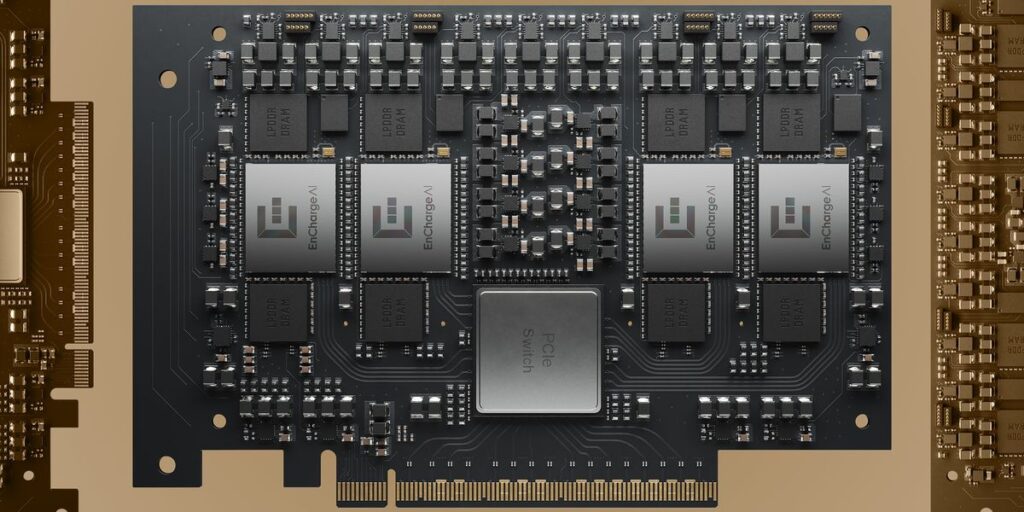

The EN100 card for PCs is a brand new analog AI chip structure.EnCharge AI
EnCharge’s answer strips out the noise by measuring the quantity of cost as a substitute of stream of cost in machine studying’s multiply-and-accumulate mantra. In conventional analog AI, multiplication relies on the connection amongst voltage, conductance, and present. On this new scheme, it relies on the connection amongst voltage, capacitance, and cost—the place principally, cost equals capacitance instances voltage.
Why is that distinction essential? It comes right down to the element that’s doing the multiplication. As a substitute of utilizing some finicky, weak gadget like RRAM, EnCharge makes use of capacitors.
A capacitor is principally two conductors sandwiching an insulator. A voltage distinction between the conductors causes cost to build up on one in every of them. The factor that’s key about them for the aim of machine studying is that their worth, the capacitance, is decided by their dimension. (Extra conductor space or much less area between the conductors means extra capacitance.)
“The one factor they depend upon is geometry, principally the area between wires,” Verma says. “And that’s the one factor you’ll be able to management very, very properly in CMOS applied sciences.” EnCharge builds an array of exactly valued capacitors within the layers of copper interconnect above the silicon of its processors.
The information that makes up most of a neural community mannequin, the weights, are saved in an array of digital memory cells, every linked to a capacitor. The information the neural community is analyzing is then multiplied by the load bits utilizing easy logic constructed into the cell, and the outcomes are saved as cost on the capacitors. Then the array switches right into a mode the place all the costs from the outcomes of multiplications accumulate and the result’s digitized.
Whereas the preliminary invention, which dates again to 2017, was an enormous second for Verma’s lab, he says the essential idea is kind of previous. “It’s known as switched capacitor operation; it seems we’ve been doing it for many years,” he says. It’s used, for instance, in industrial high-precision analog-to-digital converters. “Our innovation was determining how you should use it in an structure that does in-memory computing.”
Competitors
Verma’s lab and EnCharge spent years proving that the know-how was programmable and scalable and co-optimizing it with an structure and software program stack that fits AI wants which are vastly completely different than they had been in 2017. The ensuing merchandise are with early-access builders now, and the corporate—which recently raised US $100 million from Samsung Enterprise, Foxconn, and others—plans one other spherical of early entry collaborations.
However EnCharge is getting into a aggressive discipline, and among the many rivals is the large kahuna, Nvidia. At its huge developer occasion in March, GTC, Nvidia introduced plans for a PC product constructed round its GB10 CPU-GPU mixture and workstation constructed across the upcoming GB300.
And there can be loads of competitors within the low-power area EnCharge is after. A few of them even use a type of computing-in-memory. D-Matrix and Axelera, for instance, took a part of analog AI’s promise, embedding the reminiscence within the computing, however do the whole lot digitally. They every developed customized SRAM reminiscence cells that each retailer and multiply and do the summation operation digitally, as properly. There’s even no less than one more-traditional analog AI startup within the combine, Sagence.
Verma is, unsurprisingly, optimistic. The brand new know-how “means superior, safe, and personalised AI can run domestically, with out counting on cloud infrastructure,” he stated in a statement. “We hope it will radically broaden what you are able to do with AI.”
