A prototyping drawback is rising in at present’s efforts to affect all the pieces. What works as a lab-bench mockup breaks in actuality. Harnessing and safely storing vitality at grid scale and in automobiles, trucks, and planes is a really exhausting drawback that simplified fashions generally can’t contact.
“In electrification, at its core, you have got this mixture of electromagnetic results, heat transfer, and structural mechanics in an advanced interaction,” says Bjorn Sjodin, senior vp of product administration on the Stockholm-based software program firm COMSOL.
COMSOL is an engineering R&D software program firm that seeks to simulate not only a single phenomenon—as an illustration, the electromagnetic conduct of a circuit—however somewhat all the pertinent physics that must be simulated for creating new applied sciences in real-world working circumstances.
Engineers and builders gathered in Burlington, Mass. on 8-10 Oct. for COMSOL’s annual Boston conference, the place they mentioned engineering simulations through a number of simultaneous physics packages. And multiphysics modeling, because the rising discipline is named, has emerged as a part of electrification R&D that’s turning into extra than simply nice-to-have.
“Generally, I feel some folks nonetheless see simulation as a flowery R&D factor,” says Niloofar Kamyab, a chemical engineer and purposes supervisor at COMSOL. “As a result of they see it as a alternative for experiments. However no, experiments nonetheless must be finished, although experiments might be finished in a extra optimized and efficient manner.”
Can Multiphysics Scale Electrification?
Multiphysics, Kamyab says, can generally be solely half the sport.
“I feel on the subject of batteries, there may be one other attraction on the subject of simulation,” she says. “It’s multi-scale—how batteries might be studied throughout completely different scales. You may get in-depth evaluation that, if not very exhausting, I’d say is unattainable to do experimentally.”
Partly, it is because batteries reveal difficult behaviors (and runaway reactions) on the cell degree but in addition in unpredictable new methods on the battery-pack degree as nicely.
“The general public who do simulations of battery packs, thermal management is one in every of their major issues,” Kamyab says. “You do that simulation so you understand how to keep away from it. You recreate a cell that’s malfunctioning.” She provides that multiphysics simulation of thermal runaway allows battery engineers to soundly check how every design behaves in even probably the most excessive circumstances—with a view to cease any battery issues or fires earlier than they might occur.

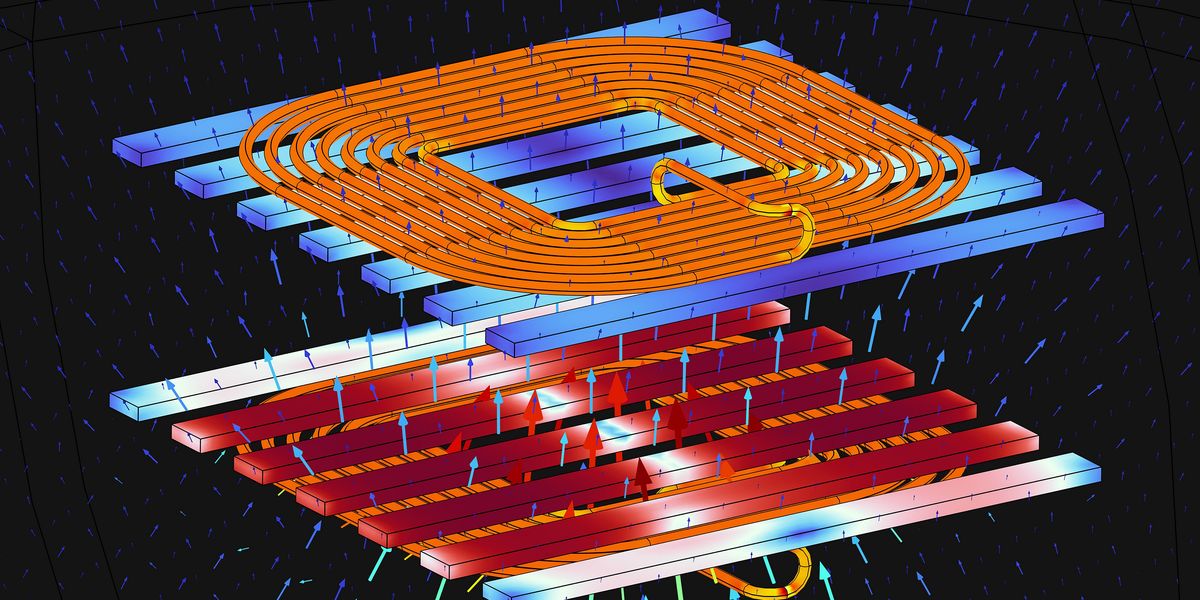

Wireless charging programs are one other space of electrification, with their very own thermal challenges. “At greater energy ranges, localized heating of the coil adjustments its conductivity,” says Nirmal Paudel, a lead engineer at Veryst Engineering, an engineering consulting agency primarily based in Needham, Mass. And that, he notes, in flip can change the complete circuit in addition to the design and efficiency of all the weather that encompass it.
Electric motors and power converters require comparable simulation savvy. In line with electrical engineer and COMSOL senior software engineer Vignesh Gurusamy, older methods of creating these age-old electrical workhorse applied sciences are proving much less helpful at present. “The current surge in electrification throughout various purposes calls for a extra holistic method because it allows the event of latest optimum designs,” Gurusamy says.
And freight transportation: “For vehicles, persons are investigating, Should we use batteries? Should we use fuel cells?” Sjodin says. “Gas cells are very multiphysics pleasant—fluid circulation, warmth switch, chemical reactions, and electrochemical reactions.”
Lastly, there’s the electric grid itself. “The grid is designed for a steady provide of energy,” Sjodin says. “So when you have got energy sources [like wind and solar] shutting on and off on a regular basis, you have got utterly new issues.”
Multiphysics in Battery and Electric Motor Design
Taking such an all-in method to engineering simulations can yield unanticipated upsides as nicely, says Kamyab. Berlin-based automotive engineering firm IAV, for instance, is creating powertrain programs that combine a number of battery codecs and chemistries in a single pack. “Sodium ion can not provide the vitality that lithium ion may give,” Kamyab says. “So that they got here up with a mix of chemistries, to get the advantages of every, after which designed a thermal administration that matches all of the chemistries.”
Jakob Hilgert, who works as a technical marketing consultant at IAV, not too long ago contributed to a COMSOL industry case study. In it, Hilgert described the design of a dual-chemistry battery pack that mixes sodium-ion cells with a extra pricey lithium solid-state battery.
Hilgert says that utilizing multiphysics simulation enabled the IAV group to play the 2 chemistries’ completely different properties off of one another. “If now we have some cells that may function at excessive temperatures and a few cells that may function at low temperatures, it’s useful to take the exhaust warmth of the higher-running cells to warmth up the lower-running cells, and vice versa,” Hilgert stated. “That’s why we got here up with a cooling system that shifts the vitality from cells that need to be in a cooler state to cells that need to be in a warmer state.”
In line with Sjodin, IAV is a component of a bigger development in a spread of industries which are impacted by the electrification of all the pieces. “Algorithmic enhancements and {hardware} enhancements multiply collectively,” he says. “That’s the way forward for multiphysics simulation. It’ll permit you to simulate bigger and bigger, extra sensible programs.”
In line with Gurusamy, GPU accelerators and surrogate fashions enable for larger jumps in electrical motor capabilities and efficiencies. Even seemingly easy elements just like the windings of copper wire in a motor core (referred to as stators) present parameters that multiphysics can optimize.
“A major frontier in electrical motor improvement is pushing power density and effectivity to new heights, with thermal administration rising as a key problem,” Gurusamy says. “Multiphysics fashions that couple electromagnetic and thermal simulations … incorporate temperature-dependent conduct in stator windings and magnetic supplies.”
Simulation can also be altering the wi-fi charging world, Paudel says. “Conventional design cycles tweak coil geometry,” he says. “As we speak, built-in multiphysics platforms allow exploration of latest charging architectures,” together with versatile charging textiles and good surfaces that adapt in real-time.
And batteries, in keeping with Kamyab, are persevering with a push towards greater energy densities and cheaper price factors. Which is altering not simply the industries the place batteries are already used, like consumer electronics and EVs. Increased-capacity batteries are additionally driving new industries like electric vertical take-off and landing aircraft (eVTOLs).
“The rationale that many concepts that we had 30 years in the past have gotten a actuality is now now we have the batteries to energy them,” Kamyab says. “That was the bottleneck for a few years. … And as we proceed to push battery expertise ahead, who is aware of what new applied sciences and purposes we’re making attainable subsequent.”
