It was 8 Could 1945, Victory in Europe Day. With the German navy’s unconditional give up, the European a part of World Struggle II got here to an finish. Alan Turing and his assistant Donald Bayley celebrated victory of their quiet English manner, by taking an extended stroll collectively. That they had been working aspect by aspect for greater than a 12 months in a secret electronics laboratory, deep within the English countryside. Bayley, a younger electrical engineer, knew little about his boss’s different life as a code breaker, solely that Turing would set off on his bicycle now and again to a different secret institution about 10 miles away alongside rural lanes, Bletchley Park. As Bayley and the remainder of the world would later be taught, Bletchley Park was the headquarters of an enormous, unprecedented code-breaking operation.
Once they sat down for a relaxation in a clearing within the woods, Bayley stated, “Nicely, the struggle’s over now—it’s peacetime, so you may inform us all.”
Donald Bayley (1921-2020) graduated with a level in electrical engineering, and was commissioned into the Royal Electrical and Mechanical Engineers. There, he was chosen to work with Alan Turing on the Delilah undertaking. In later life he designed the teletypewriter-based “Piccolo” system for secret diplomatic radio communications, adopted by the British International and Commonwealth Workplace and used worldwide for many years.Bonhams
“Don’t be so bloody foolish,” Turing replied.
“That was the top of that dialog,” Bayley recalled 67 years later.
Turing’s unimaginable code-breaking work is now not secret. What’s extra, he’s famend each as a founding father of computer science and as a pioneering determine in artificial intelligence. He’s not so well-known, nevertheless, for his work in electrical engineering. This can be about to alter.
In November 2023, a big cache of his wartime papers—nicknamed the “Bayley papers”—was
auctioned in London for nearly half one million U.S. {dollars}. The beforehand unknown cache comprises many sheets in Turing’s personal handwriting, telling of his top-secret “Delilah” engineering undertaking from 1943 to 1945. Delilah was Turing’s transportable voice-encryption system, named after the biblical deceiver of males. There’s additionally materials written by Bayley, typically within the type of notes he took whereas Turing was talking. It’s due to Bayley that the papers survived: He saved them till he died in 2020, 66 years after Turing handed away.
When the British Authorities realized in regards to the sale of those papers at public sale, it acted swiftly to place a ban on their export, declaring them to be “an essential a part of our nationwide story,” and saying “It’s proper {that a} UK purchaser has the chance to buy these papers.” I used to be fortunate sufficient to get entry to the gathering previous to the November sale, when the public sale home requested for my help in figuring out a few of the technical materials. The Bayley papers shine new mild on Turing the engineer.
On the time, Turing was touring from the summary to the concrete. The papers supply intriguing snapshots of his journey from his prewar give attention to mathematical logic and quantity idea, into a brand new world of circuits, electronics, and engineering math.
Alan Turing’s Delilah Undertaking
Throughout the struggle, Turing realized that cryptology’s new frontier was going to be the encryption of speech. The present wartime cipher machines—such because the Japanese “
Purple” machine, the British Typex, and the Germans’ well-known Enigma and teletypewriter-based SZ42—had been all for encrypting typewritten textual content. Textual content, although, is scarcely essentially the most handy manner for commanders to speak, and safe voice communication was on the navy want checklist.
Bell Labs’ pioneering
SIGSALY speech-encryption system was constructed in New York City, beneath a U.S. Military contract, throughout 1942 and 1943. It was gigantic, weighing over 50 thousand kilograms and filling a room. Turing was accustomed to SIGSALY and needed to miniaturize speech encryption. The end result, Delilah, consisted of three small models, every roughly the dimensions of a shoebox. Weighing simply 39 kg, together with its energy pack, Delilah can be at house in a truck, a trench, or a big backpack.
Bell Labs’ high secret set up of the SIGSALY voice-encryption system was a room-size machine that weighed over 50,000 kilograms.NSA
In 1943, Turing arrange bench house in a Nissen hut and labored on Delilah in secret. The hut was at Hanslope Park, a military-run institution in the midst of nowhere, England. At present, Hanslope Park remains to be an ultrasecret intelligence website often called His Majesty’s Government Communications Centre. Within the Turing custom, HMGCC engineers provide at the moment’s British intelligence brokers with specialised {hardware} and software program.
Turing appears to have loved the 2 years he spent at Hanslope Park engaged on Delilah. He made an outdated cottage his house and took meals within the Military mess. The commanding officer recalled that he “quickly settled down and have become one among us.” In 1944, Turing acquired his younger assistant, Bayley, who had just lately graduated from the College of Birmingham with a bachelor’s diploma in electrical engineering. The 2 turned good mates, working collectively on Delilah till the autumn of 1945. Bayley referred to as Turing merely “Prof,” as everybody did within the Bletchley-Hanslope orbit.
“I admired the originality of his thoughts,” Bayley advised me once I interviewed him within the Nineties. “He taught me an awesome deal, for which I’ve all the time been grateful.”
In return, Bayley taught Turing bench expertise. When he first arrived at Hanslope Park, Bayley discovered Turing wiring collectively circuits that resembled a “spider’s nest,” he stated. He took Turing firmly by the hand and dragged him via breadboarding boot camp.

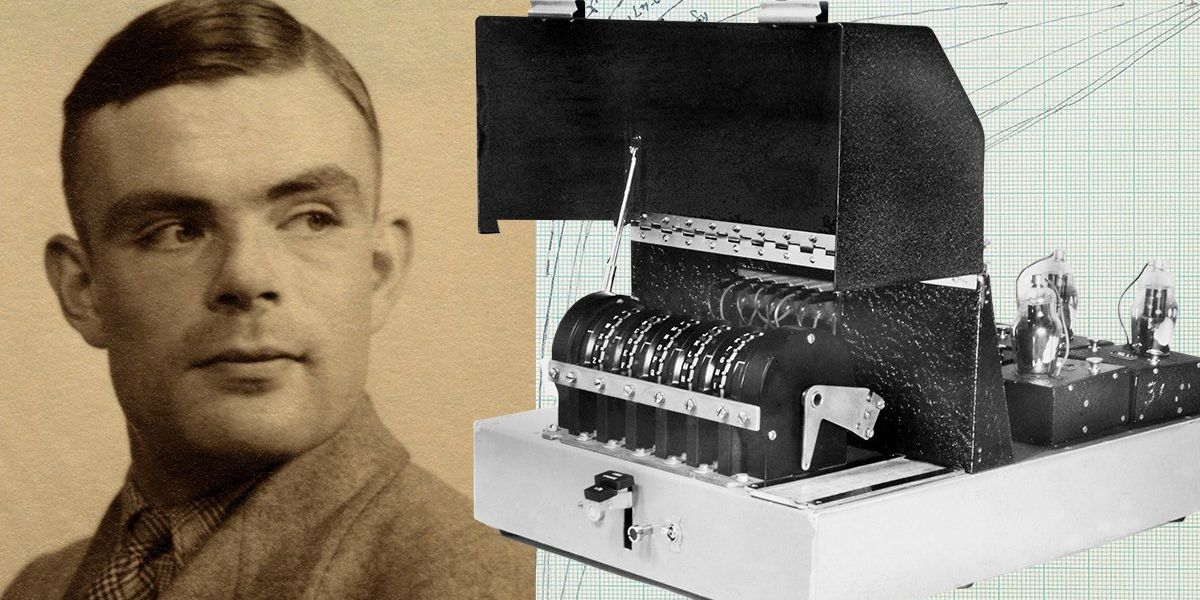

Alan Turing and his assistant Donald Bayley created this working prototype of their voice-encryption system, referred to as Delilah.The Nationwide Archives, London
A 12 months later, because the European struggle floor to a detailed, Turing and Bayley bought a prototype system up and operating. This “did all that could possibly be anticipated of it,” Bayley stated. He described the Delilah system as “one of many first to be based mostly on rigorous cryptographic rules.”
How Turing’s Voice-Encryption System Labored
Turing drew inspiration for the voice-encryption system from present cipher machines for textual content. Teletypewriter-based cipher machines such because the Germans’ subtle SZ42—damaged by Turing and his colleagues at Bletchley Park—labored in a different way from the higher recognized Enigma machine. Enigma was often used for messages transmitted over radio in Morse code. It encrypted the letters
A via Z by lighting up corresponding letters on a panel, referred to as the lampboard, whose electrical connections with the keyboard had been frequently altering. The SZ42, in contrast, was hooked up to a daily teletypewriter that used a 5-bit telegraph code and will deal with not simply letters, but additionally numbers and a spread of punctuation. Morse code was not concerned. (This 5-bit telegraph code was a forerunner of ASCII and Unicode and remains to be utilized by some ham radio operators.)
The SZ42 encrypted the teletypewriter’s output by including a sequence of obscuring telegraph characters, referred to as key (the singular kind “key” was utilized by the codebreakers and codemakers as a mass noun, like “footwear” or “output”), to the plain message. For instance, if the German plaintext was ANGREIFEN UM NUL NUL UHR (Assault at zero hundred hours), and the obscuring characters that had been getting used to encrypt these three phrases (and likewise the house between them) had been Y/RABV8WOUJL/H9VF3JX/D5Z, then the cipher machine would first add “Y” to “A”—that’s to say, add the 5-bit code of the primary letter of the important thing to the 5-bit code of the primary letter of the plaintext—after which added “/” to “N”, then “R” to “G”, and so forth. Underneath the SZ42’s guidelines for character addition (which had been hardwired into the machine), these 24 additions would produce PNTDOOLLHANC9OAND9NK9CK5, which was the encrypted message. This precept of producing the obscuring key after which including it to the plain message was the idea that Turing prolonged to the brand new territory of speech encryption.
The Delilah voice-encryption machine contained a key unit that generated the pseudorandom numbers used to obscure messages. This blueprint of the important thing unit options 8 multivibrators (labeled “v1,” “v2,” and so forth).The Nationwide Archives, London
Contained in the SZ42, the important thing was produced by a key generator, consisting of a system of 12 wheels. Because the wheels turned, they churned out a continuing stream of seemingly random characters. The wheels within the receiver’s machine had been synchronized with the sender’s, and so produced the identical characters—Y/RABV8WOUJL/H9VF3JX/D5Z in our instance. The receiving machine subtracted the important thing from the incoming ciphertext PNTDOOLLHANC9OAND9NK9CK5, revealing the plaintext ANGREIFEN9UM9NUL9NUL9UHR (an area was all the time typed as “9”).
Making use of the same precept, Delilah added the obscuring key to spoken phrases. In Delilah’s case, the important thing was a stream of pseudorandom numbers—that’s, random-seeming numbers that weren’t really random. Delilah’s key generator contained 5 rotating wheels and a few fancy electronics concocted by Turing. As with the SZ42, the receiver’s key generator needed to be synchronized with the sender’s, in order that each machines produced similar key. Of their as soon as extremely secret however
now declassified report, Turing and Bayley commented that the issue of synchronizing the 2 key turbines had offered them with “formidable difficulties.” However they overcame these and different issues, and finally demonstrated Delilah utilizing a recording of a speech given by Winston Churchill, efficiently encrypting, transmitting, and decrypting it.
This loose-leaf sheet reveals a circuit utilized by Turing in an experiment to measure the cut-off voltage at a triode tube, most certainly in reference to the avalanche-effect primary to a multivibrator. Multivibrators had been a vital part of Delilah’s key-generation module. Bonhams
The encryption-decryption course of started with discretizing the audio sign, which at the moment we’d name analog-to-digital conversion. This produced a sequence of particular person numbers, every comparable to the sign’s voltage at a specific cut-off date. Then numbers from Delilah’s key had been added to those numbers. Throughout the addition, any digits that wanted to be carried over to the subsequent column had been disregarded of the calculation—referred to as “noncarrying” addition, this helped scramble the message. The ensuing sequence of numbers was the encrypted type of the speech sign. This was transmitted robotically to a second Delilah on the receiving finish. The receiving Delilah subtracted the important thing from the incoming transmission, after which transformed the ensuing numbers to voltages to breed the unique speech.
The end result was “whistly” and stuffed with background noise, however often intelligible—though if issues went fallacious, there could possibly be “a sudden crack like a rifle shot,” Turing and Bayley reported cheerfully.
However the struggle was winding down, and the navy was not interested in the system. Work on the Delilah undertaking stopped not lengthy after the struggle ended, when Turing was employed by the British Nationwide Bodily Laboratory to design and develop an digital laptop. Delilah “had little potential for additional growth,” Bayley stated and “was quickly forgotten.” But it provided a really excessive degree of safety, and was the primary profitable demonstration of a compact transportable system for voice encryption.
What’s extra, Turing’s two years of immersion in electrical engineering stood him in good stead, as he moved on to designing digital computer systems.
Turing’s Lab Pocket book
The 2 years Turing spent on Delilah produced the Bayley papers. The papers comprise a laboratory pocket book, a substantial amount of unfastened sheets (some organized into bundles), and—the jewel of the gathering—a looseleaf ring binder bulging with pages.
The greenish-gray quarto-size lab pocket book, a lot of it in Turing’s handwriting, particulars months of labor. The primary experiment Turing recorded concerned measuring a pulse emitted by a
multivibrator, which is a circuit that may be triggered to provide a single voltage pulse or a series of pulses. Within the experiment, the heartbeat was fed into an oscilloscope and its form examined. Multivibrators had been essential parts of Turing’s all-important key generator, and the subsequent web page of the pocket book, labeled “Measurement of ‘Heaviside perform,’ ” reveals the voltages measured in a part of the identical multivibrator circuit.
A key merchandise within the Bayley papers is that this lab pocket book, whose first 24 pages are in Turing’s handwriting. These element Turing’s work on the Delilah undertaking previous to Bayley’s arrival in March 1944.Bonhams
At present, there may be intense curiosity in using multivibrators in cryptography. Turing’s key generator, essentially the most authentic a part of Delilah, contained eight multivibrator circuits, together with the five-wheel meeting talked about beforehand. In impact the multivibrators had been eight extra very difficult “wheels,” and there was extra circuitry for enhancing the random look of the numbers the multivibrators produced.
Subsequent experiments recorded within the lab guide examined the efficiency of all the principle components of Delilah—the heartbeat modulator, the harmonic analyzer, the important thing generator, the sign and oscillator circuits, and the radio frequency and aerial circuits. Turing labored alone for about the primary six months of the undertaking, earlier than Bayley’s arrival in March 1944, and the pocket book is in Turing’s handwriting as much as and together with the testing of the important thing generator. After this, the job of recording experiments handed to Bayley.
The Bandwidth Theorem
Two unfastened pages, in Turing’s handwriting, clarify the so-called bandwidth theorem, now often called the Nyquist-Shannon sampling theorem. This was probably written out for Bayley’s profit. Bonhams
Among the many piles of unfastened sheets coated with Turing’s riotously untidy handwriting, one web page is headed “Bandwidth Theorem.” Delilah was in impact an utility of a bandwidth theorem that at the moment is called the Nyquist-Shannon
sampling theorem. Turing’s proof of the theory is scrawled over two sheets. Most likely he wrote the proof out for Bayley’s profit. The concept—which expresses what the sampling charge must be if sound waves are to be reproduced precisely—ruled Delilah’s conversion of sound waves into numbers, achieved by sampling vocal frequencies a number of thousand instances a second.
At Bell Labs, Claude Shannon had written a paper sketching earlier work on the theory after which proving his personal formulation of it. Shannon wrote the paper in 1940, though it was not printed till 1949. Turing worked at Bell Labs for a time in 1943, in reference to SIGSALY, earlier than returning to England and embarking on Delilah. It appears probably that he and Shannon would have mentioned sampling charges.
Turing’s “Purple Type” Notes
Throughout the struggle, Hanslope Park housed a big radio-monitoring part. Shifts of operators repeatedly searched the airwaves for enemy messages. Enigma transmissions, in Morse code, had been recognized by their stereotypical navy format, whereas the distinctive warble of the SZ42’s radioteletype indicators was immediately recognizable. After latching onto a transmission, an operator stuffed out an Military-issue kind (preprinted in brilliant crimson ink). The frequency, the time of interception, and the letters of ciphertext had been famous down. This “crimson kind” was then rushed to the code breakers at Bletchley Park.
Writing paper was briefly provide in wartime Britain, and Turing used the clean reverse sides of those “crimson varieties,” designed for radio operators to notice down details about intercepted indicators.Bonhams
Writing paper was briefly provide in wartime Britain. Turing evidently helped himself to massive handfuls of crimson varieties, scrawling out screeds of notes about Delilah on the clean reverse sides. In a single bundle of crimson varieties, numbered by Turing on the corners, he thought of a resistance-capacitance community into which a “pulse of space A at time 0” is enter. He calculated the cost as the heartbeat passes via the community, after which calculated the “output volts with pulse of that space.” The next sheets are coated with integral equations involving time, resistance, and cost. Then a scribbled diagram seems, during which a wavelike pulse is analyzed into discrete “steps”—a prelude to a number of pages of
Fourier-type evaluation. Turing appended a proof of what he termed the “Fourier theorem,” proof that these pages could have been a tutorial for Bayley.
The very look of those papers speaks to the character and difficult nature of the Delilah undertaking. The usually top-secret Military crimson varieties, the proof of wartime shortages, the scribbled formulation, the complexity of the mathematics, the tutorials for Bayley—all contribute to the image of the Prof and his younger assistant working carefully collectively at a secret navy institution on a tool that pushed the engineering envelope.
The duvet of the looseleaf ring binder is embossed in gilt letters “Queen Mary’s College, Walsall,” the place Bayley had as soon as been a pupil. It’s full of handwritten notes taken by Bayley throughout a sequence of night lectures that Turing gave at Hanslope Park. The scale of Turing’s viewers is unknown, however there have been quite a few younger engineers like Bayley at Hanslope.
These notes can moderately be given the title
Turing’s Lectures on Superior Arithmetic for Electrical Engineers. Working to 180 pages, they’re essentially the most intensive noncryptographic work by Turing presently recognized, vying in size together with his 1940 write-up about Enigma and the Bombe, affectionately recognized at Bletchley Park as “Prof’s E book.”
Stepping again a little bit helps to place this essential discovery into context. The standard image of Turing held him to be a mathematician’s mathematician, dwelling in a realm far faraway from sensible engineering. In 1966, for example,
Scientific American ran an article by the legendary laptop scientist and AI pioneer John McCarthy, during which he said that Turing’s work didn’t play “any direct position within the labors of the boys who made the pc a actuality.” It was a typical view on the time.
A binder full of Bayley’s notes of Turing’s lectures is the jewel of the just lately offered doc assortment.Bonhams
As we now know, although, after the struggle Turing himself designed an digital laptop, referred to as the Automated Computing Engine, or ACE. What’s extra, he designed the programming system for the Manchester College “Child” laptop, in addition to the {hardware} for its punched-tape enter/output. Child got here to life in mid-1948. Though small, it was the primary really stored-program digital laptop. Two years later, the prototype of Turing’s ACE ran its first program. The prototype was later commercialized because the English Electrical DEUCE (Digital Digital Common Computing Engine). Dozens of DEUCEs had been bought—huge gross sales in these days—and so Turing’s laptop turned a serious workhorse in the course of the first many years of the Digital Age.
But the picture has endured of Turing as somebody who made elementary but summary contributions, slightly than as somebody whose endeavors generally match onto the spectrum from bench electronics via to engineering idea. The Bayley papers convey a special Turing into focus: Turing the artistic electrical engineer, with blobs of solder throughout his sneakers—even when his soldered joints did generally tend to come back aside, as Bayley beloved to narrate.
Turing’s lecture notes are in impact a textbook, terse and selective, on superior math for circuit engineers, though now very out-of-date, in fact.
There’s little particularly about electronics within the lectures, except for passing mentions, equivalent to a reference to cathode followers. When speaking in regards to the Delilah undertaking, Bayley preferred to say that Turing had solely just lately taught himself elementary electronics, by finding out an RCA vacuum tube guide whereas he crossed the Atlantic from New York to Liverpool in March 1943. This can’t be fully correct, nevertheless, as a result of in 1940 Turing’s “Prof’s E book” described using some electronics. He detailed an association of 26 thyratron tubes powered by a 26-phase provide, with every tube controlling a double-coil relay “which solely journeys if the thyratron fails to fireside.”
Turing’s information of sensible electronics was most likely inferior to his assistant’s, initially anyway, since Bayley had studied the topic at college after which was concerned with radar earlier than his switch to Hanslope Park. When it got here to the mathematical aspect of issues, nevertheless, the scenario was very completely different. The Bayley papers display the maturity of Turing’s information of the arithmetic {of electrical} circuit design—information that was important to the success of the Delilah undertaking.
The weird breadth of Turing’s mental skills—mathematician, logician, code breaker, thinker, laptop theoretician, AI pioneer, and computational biologist—is already half and parcel of his public persona. To those should now even be added an appreciation of his idiosyncratic prowess in electrical engineering.
A number of the content material on this story initially appeared in Jack Copeland’s report for the Bonhams public sale home.
